RIDGID

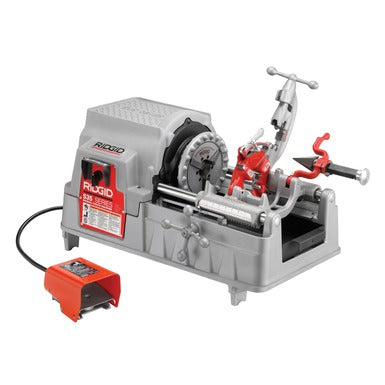

MODEL 535 THREADING MACHINE

Name: MODEL 535 THREADING MACHINE
Brand: RIDGID
SKU: RID93287
Price: 5976.15 USD
Availability: InStock

SKU:RID93287

$5,976.15 USD

~~$0.00 USD~~ $5,976.15 USD

Sale Sold out

Shipping calculated at checkout.

In stock

Product Features

Large 1.75 gallon (6.6 L) oil tray.
Large chip tray.
Generous top cover for keeping tools and fittings handy.
High clearance carriage makes threading easier.
Speed chuck with rocker-action jaws centers and grips work piece instantly.
Can be used with geared Models 141 and 161 threaders.
Uses Model 816/817 semiautomatic, Model 815A self-opening or Model 811A quick-opening die heads.
Length gauge for quick, accurate cut-off.
Accessories
Die heads and dies.
Die head racks.

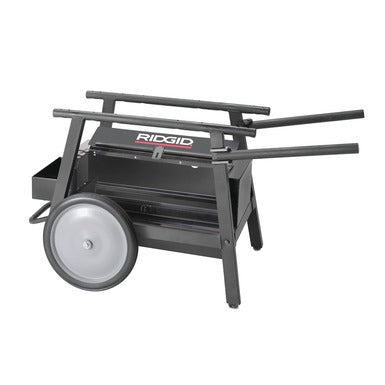

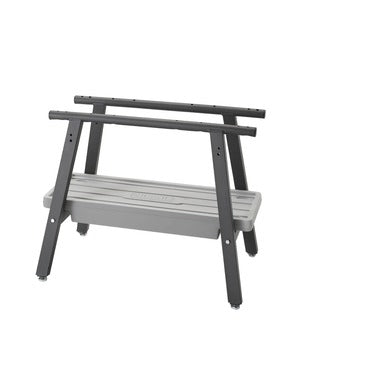

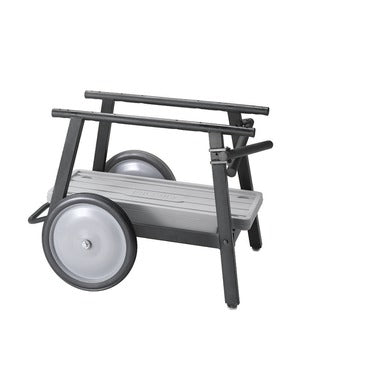

Three models of stands available.
Thread cutting oil.
Nipple chuck.

Bolt Capacity	1/4"-2" (6mm-50mm).
Switches	Forward/off/reverse and integral foot switch.
Chuck	Speed Chuck™ with three replaceable rocker-action jaw inserts.
Rear Centering Device	Cam-action, turns with chuck.
Cutters	Self-centering, full-floating. Two models available: Standard Model 820 Wheel-Type Cutter, pipe capacity 1/8"-2" (3mm-50mm), bolt capacity 1/4"-1" (6mm-25mm). Optional Model 821 Blade-Type cutter, pipe capacity 1/2"-2" (12mm-50mm). See ordering chart.
Reamer	5-flute cone, RH, 1/8"-2" (3mm-50mm).
Oil Pump	Self-priming gerotor oil pump.
Reamers	RH/LH combination reamer available.
