Greenlee 5124 Phase Sequence and Motor Rotation Meter (Non-Contact Tester)

The Greenlee 5124 Phase Sequence and Motor Rotation Meter is a compact, easy-to-use diagnostic tool built for electricians and industrial technicians who work with three-phase power and motor systems. The 5124 verifies phase sequence and identifies motor rotation direction — including non-contact rotation testing on running motors — helping you prevent costly motor damage, equipment failures, and rework on commercial and industrial jobs.

Key Features & Benefits

• Phase Sequence Detection: Quickly verify correct phase rotation (A-B-C or 1-2-3) on three-phase power sources before connecting equipment — prevents damage to motors, compressors, and pumps caused by reverse rotation.
• Motor Rotation Direction Testing: Identify the rotational direction of industrial motors, compressors, generators, and pumps before energizing — critical for HVAC, pumping, and conveyor installations.
• Non-Contact Motor Rotation: Determine rotation direction on running single-phase and three-phase motors without using leads — fast, safe testing without disconnecting power.
• CAT III 600V Safety Rating: Built for use on distribution panels, motor control centers, and industrial circuits.
• Wide Voltage Range (90V – 600V AC): Tests low-voltage commercial to high-voltage industrial systems with one instrument.
• Frequency Range 15 Hz – 400 Hz: Works with standard 50/60 Hz systems and variable frequency drive (VFD) outputs.

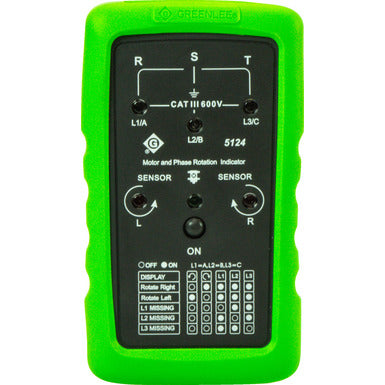

• Bright LED Indicators: Easy-to-read display shows phase sequence and rotation direction at a glance — no decoding required.
• Compact & Portable: 123 × 71 × 29 mm housing fits easily in a tool pouch or service bag.
• CE & cETLus Certified: Meets international safety and quality standards.

Common Applications

• Three-Phase Motor Installation: Verify correct phase sequence before energizing motors to prevent reverse rotation damage
• HVAC Service & Installation: Confirm compressor and blower motor rotation direction
• Pump & Compressor Verification: Critical for centrifugal pumps and air compressors where reverse rotation causes immediate damage
• VFD Output Testing: Wide frequency range works with variable frequency drive outputs
• Industrial Troubleshooting: Quick diagnostic check on running equipment without shutdown
• Generator Phasing: Verify generator output phase sequence before paralleling or connecting to load

Specifications

• Model / SKU: Greenlee 5124
• Type: Phase Sequence and Motor Rotation Meter
• Voltage Rating: CAT III, 600V
• Operating Voltage Range: 90V – 600V AC
• Frequency Range: 15 Hz – 400 Hz
• Display: LED indicators
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Dimensions: 123 × 71 × 29 mm (4.84" × 2.80" × 1.14")
• Standards Compliance: CE, cETLus

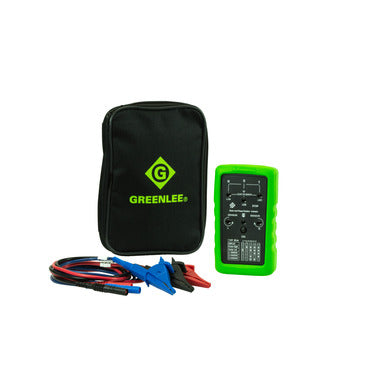

What's Included

• (1) Greenlee 5124 Phase Sequence and Motor Rotation Meter
• (3) Tri-colored banana test leads
• (3) Alligator clips
• (1) 9V battery
• (1) Soft carrying case
