RIDGID

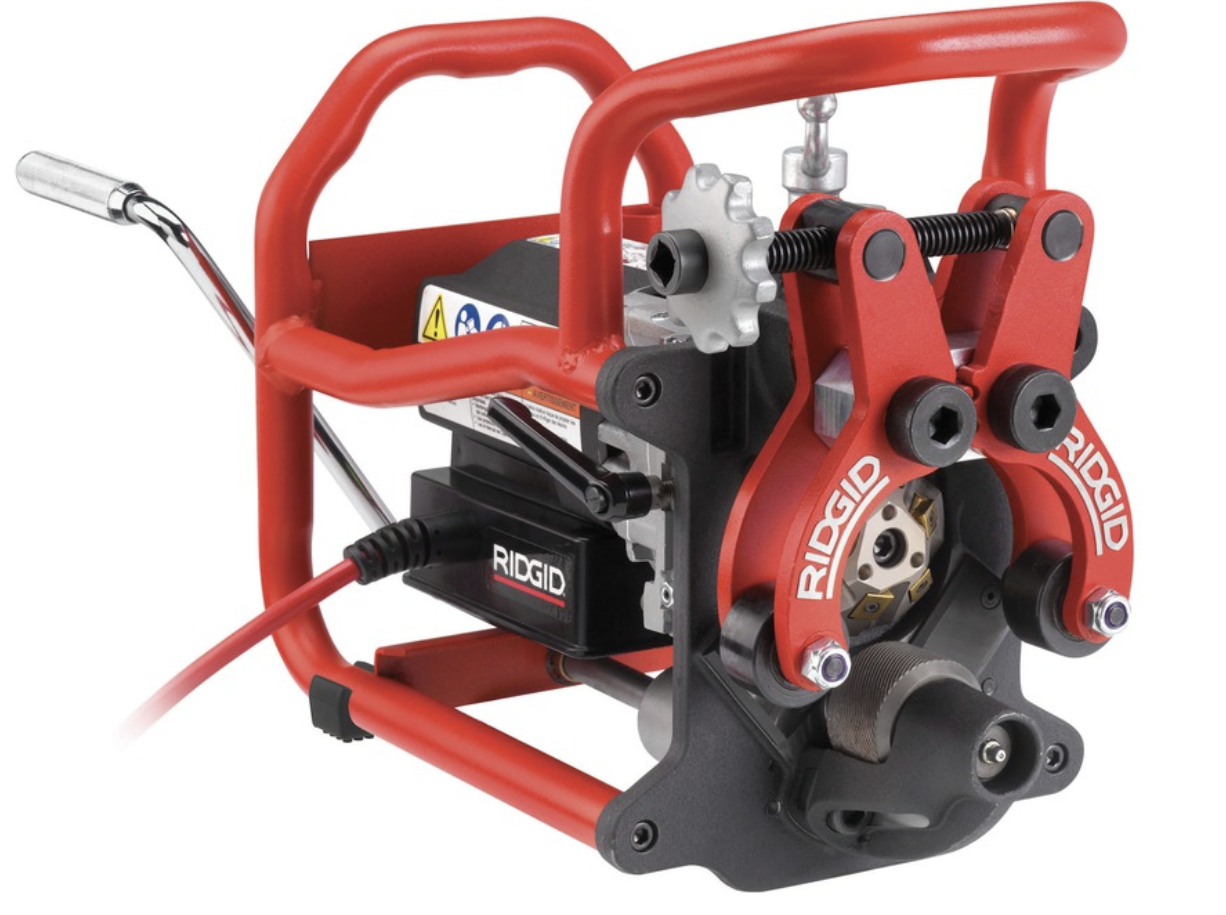

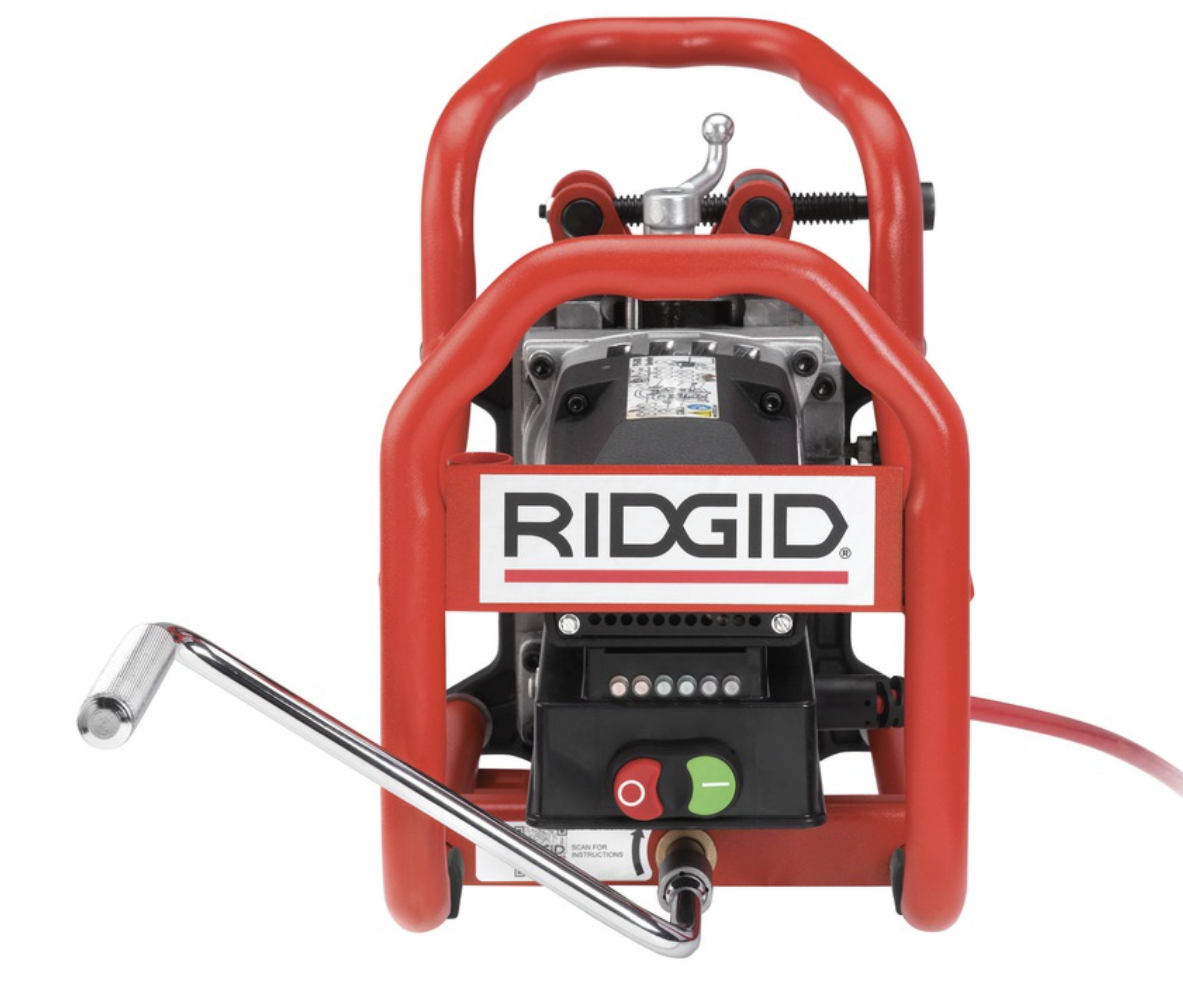

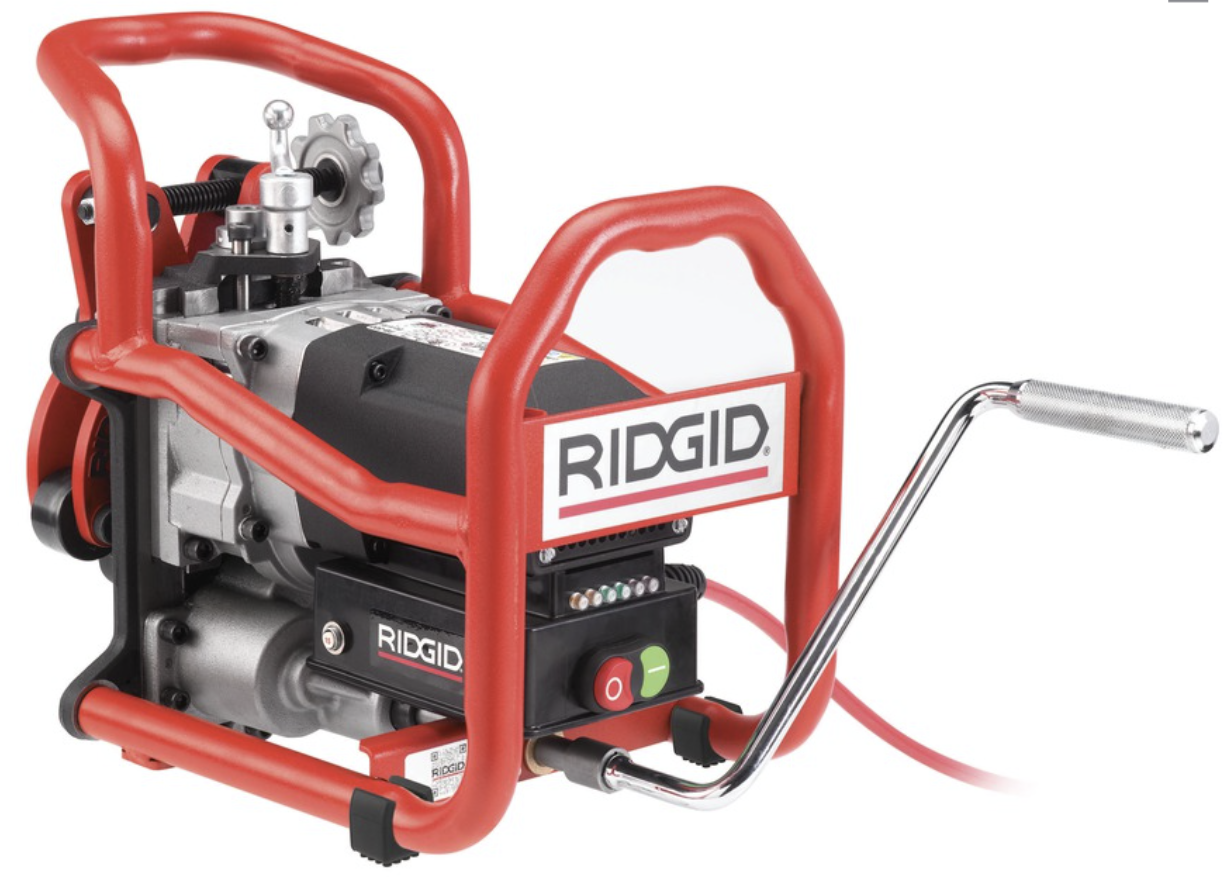

PIPE BEVELLER - B500 120V 37.5HD
PIPE BEVELLER - B500 120V 37.5HD
SKU:RID49298
Regular price
$1.00 USD
Regular price
Sale price
$1.00 USD
Unit price
/
per
Shipping calculated at checkout.
Share
In stock
Features
Speed
- Set-up and bevel 10" diameter schedule 40 pipe in 45 seconds!
- Pipe is cool to touch immediately following bevelling.
Consistency
- Accurate bevel angle around diameter of the pipe allows for optimal number of cover passes.
- Adjustable land width from 0" to 3/16" to fit welders’ requirements.
- Produces a machined finish due to 6 replaceable cutter inserts working simultaneously.
Simplicity
- Fast to set-up and operate.
- Patent-pending clamp system firmly secures tool to the pipe.
- Speed monitoring with led indicators for optimal cutter performance.
- Grinding spark free operation.
- Adjustable at 1/32" increments
Specifications
Capacity: |
4” pipe and larger, flat plate. |
Pipe Wall/ Plate Thickness: |
Min 0.188" (4.8 mm)/Max 0.50" (12.7 mm). |
Models Equipped with: |
37.5°; 30° or 45° (with Optional Cutter Heads). |
Cutter Head: |
Rated for most steel & stainless steel*. |
Size: |
15.8 in. (401 mm) L x 11.5 in. (292 mm) W x 13.3 in. (338 mm) H. |
Land Width: |
0" - 3/16" (4.8 mm) in approximately 1/32" (0.8 mm) increments. |
Motor Type: |
Universal single-phase. |
Motor RPM: |
950 (no load). |
Body: |
Steel frame |
