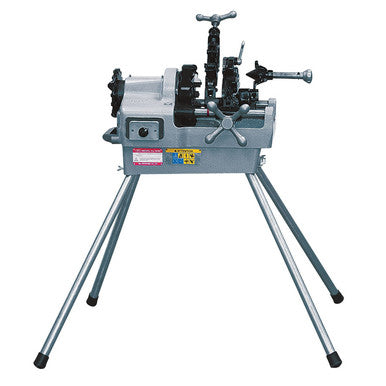

1/8-2' Pipe Threading Machine (REPLACED #8090) WITH UNIVERSAL DIE HEAD

Product Features

• Portable, compact electric pipe threading machine that cuts, threads, and reams pipe from 1/2 in. to 2 in.
• Supplied with the 897065 universal manual-open die head covering 1/8 in. – 2 in.
• Complete interchangeability with Model 300 dies and die heads, so existing tooling carries over
• Through-the-die-head oiling delivers cutting oil right at the dies for cleaner threads and longer die life
• 700 W single-phase series motor at 39 no-load RPM for steady torque in 2 in. pipe
• Front and rear chucks hold and center the pipe for straight, concentric threads
• Integral cutter and reamer — one setup handles the full cut-thread-ream sequence
• Four legs and a large scrap tray keep the work area contained
• Foot switch leaves both hands free on the pipe
• Ships with two sets of NPT dies (1/2"–3/4" and 1"–2"), spare cutter wheel, threading oil, and spare carbon brushes
• Backed by a three-year warranty that includes the electric motor
• Part of the Wheeler-Rex 8090 series 2 in. threading machine line

Specifications

• SKU: WHE8197
• Price: $5,457.33
• Weight: 135 lbs
• Dimensions: 25.0 in x 17.0 in x 16.0 in
• Style: Electric Pipe Threading Machine
• Brand: Wheeler-Rex
• Model / Cat. No.: 8097 (listed by some distributors as 8197 — see note)
• Base Machine: 8090
• Die Head Supplied: 897065 universal manual-open, 1/8 in. – 2 in.
• Pipe Capacity: 1/2 in. – 2 in.
• Bolt Capacity (die head): 1/4 in. – 2 in.
• Thread Types (die head): NPT, NPSM, UNC
