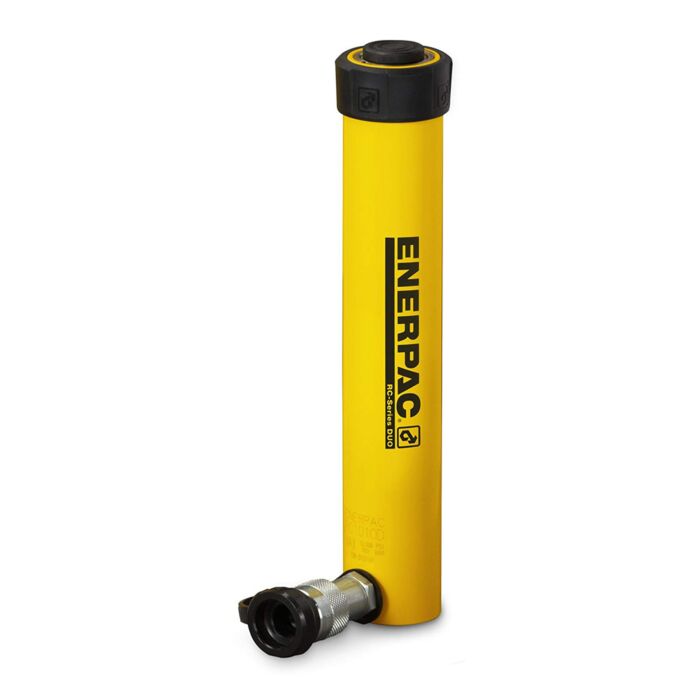

10 Ton Cylinder, S/A

Product Features

• RC-Series single-acting hydraulic cylinder rated 10 ton for pushing, lifting, pressing, and bending
• 6.13 in. stroke covers a wide range of general purpose lifting and pressing work
• 10,000 psi maximum operating pressure — the industry standard working pressure
• Heavy-duty pre-tensioned spring returns the plunger quickly after each stroke
• Unique GR2 bearing design reduces wear and extends cylinder life
• Collar threads, plunger threads, and base mounting holes allow easy fixturing in a press or jig
• Designed for use in any position, including horizontal and inverted
• High-strength alloy steel body with baked enamel finish for corrosion resistance
• Redesigned cylinder thread protector makes it easier to fit and remove
• Plunger wiper keeps contamination out of the cylinder, extending seal life
• Hardened, removable plunger saddle protects the plunger end and gives access to the mounting threads
• CR-400 coupler and dust cap included
• Also available as a cylinder-and-pump set
• Part of Enerpac's RC-Series general purpose cylinder line

Specifications

• SKU: ENERC106
• Price: 717.73
• Weight: 6.0 lbs
• Dimensions: 2.25 in x 4.75 in
• Style: Single-Acting Hydraulic Cylinder (General Purpose)
• Brand: Enerpac
• Series: RC-Series
• Model / Cat. No.: RC-106 (RC106)
• Nominal Capacity: 10 ton
• Maximum Capacity: 11.2 ton
• Maximum Operating Pressure: 10,000 psi (700 bar)
• Stroke: 6.13 in
