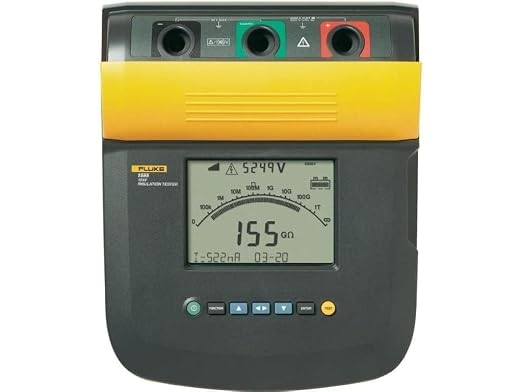

10KV INSULATION TESTER KIT WITH IR 3000FC 1550 CONNECTOR

Product Features

• Digital insulation resistance tester with test voltages up to 10 kV — for switchgear, motors, generators, and cables
• Measures insulation resistance up to 2 TΩ
• Conducts the entire range of test voltages specified in IEEE 43-2000
• CAT IV 600 V safety rating
• Supplied with the Fluke Connect® ir3000 FC Connector for wireless data transfer to a smartphone
• Configure, start, and stop tests remotely from a safe distance away from energized equipment using Fluke Connect® and a phone
• Real-time trending gives easy-to-see visual cues instead of rapidly changing, hard-to-read values on the instrument display
• On a ramp test, a sudden drop in resistance causes the tester to cut the voltage and display the ramped voltage and resistance
• Falling resistance during a test points to poor insulation health or moisture content — visible on the phone as it happens
• Measurement storage plus PC interface for preventive and predictive maintenance programs
• Fluke Connect® saves test results to the cloud for analysis and report creation from the desktop
• Historical tracking and trending identifies asset degradation over time (Fluke Connect Assets sold separately)
• 3-year warranty

Specifications

• SKU: FLUFLUKE-1555
• Price: 7014.79
• Weight: ~ 12.00 lbs
• Dimensions: 17.50 L x 14.00 W x 7.50 H (inch)
• Style: Insulation Resistance Tester (Megohmmeter)
• Brand: Fluke
• Model: 1555 FC with ir3000 FC Connector
• Fluke Part No.: 4977519
• Maximum Test Voltage: 10 kV
• Maximum Resistance: 2 TΩ
• Standards: Test voltage range per IEEE 43-2000
• Safety Rating: CAT IV 600 V
