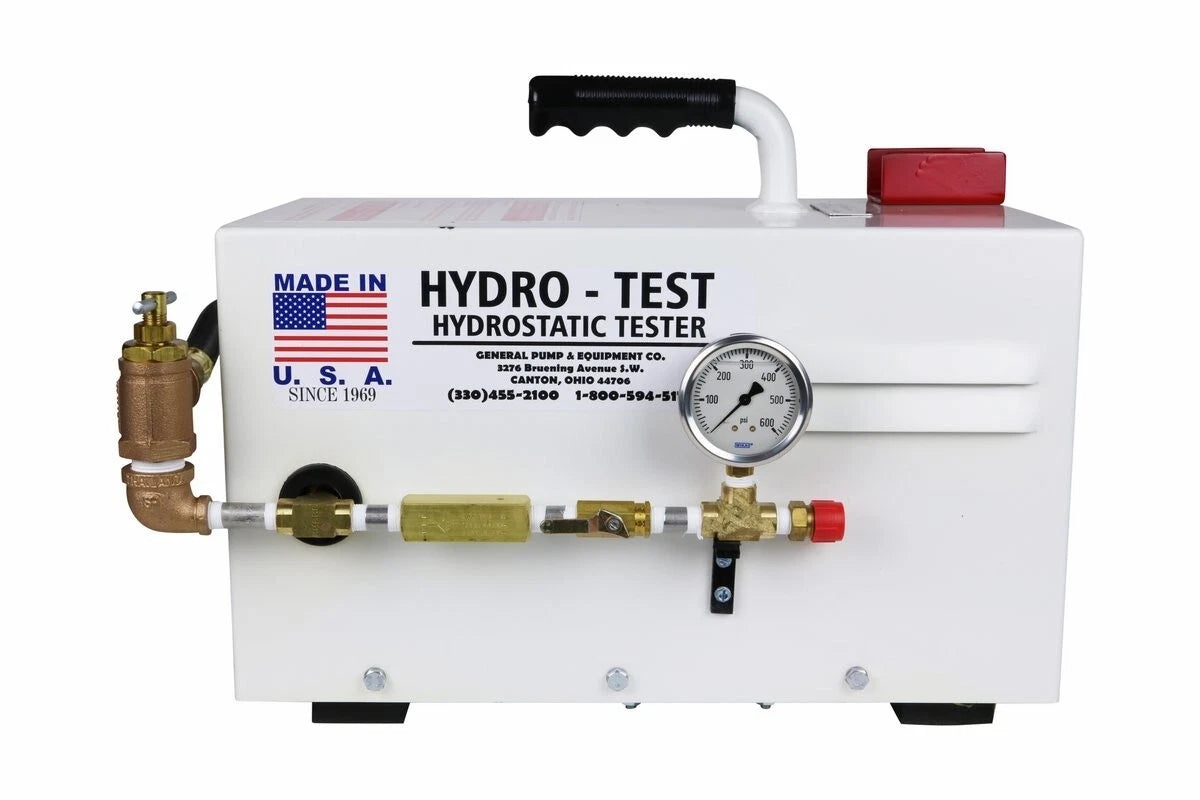

3/4 HP 500 PSI, 2 GPM HYDRO-TEST PUMP

Product Features

• Electric hydrostatic test pump rated to 500 PSI maximum at 2 GPM
• Hydro-Testing verifies a leak-free system before it's closed up and covered
• General Pump & Equipment claims hydrostatic testing cost can be reduced as much as 90% versus alternative methods
• Easily adjustable bronze relief valve with T-handle and locknut — set any maximum test pressure from incoming water pressure up to 500 PSI
• Ships pre-set at 400 PSI from the factory, tested and ready to operate out of the box
• Glycerin-filled pressure gauge stays readable and damps needle flutter during pumping
• Brass and stainless steel fittings throughout
• 1/2" Y-strainer on the inlet plumbing protects the pump from debris in the supply line
• High pressure check valve holds test pressure in the system
• Housed in a powder-coated 16 ga steel box built for jobsite abuse
• Garden hose swivel inlet fitting and SAE male outlet fitting — connects to standard supply
• Works with any inlet water pressure from 5 to 105 PSI
• Includes a 7' electrical cord and 10' high pressure hose
• Runs on standard 120V AC — no special power required

Specifications

• SKU: GEN6334-550
• Price: 1589.19
• Weight: 15.00 lbs
• Dimensions: 20.00 L x 13.00 W x 5.00 H (inch)
• Style: Electric Hydrostatic Test Pump
• Brand: General Pump & Equipment (Hydro-Test)
• Model / Cat. No.: 6334-550
• Series: 6334
• Maximum Pressure: 500 PSI
• Flow Rate: 2 GPM
• Motor: 3/4 HP
• Electrical: 11 amps @ 110V; 120V AC required
