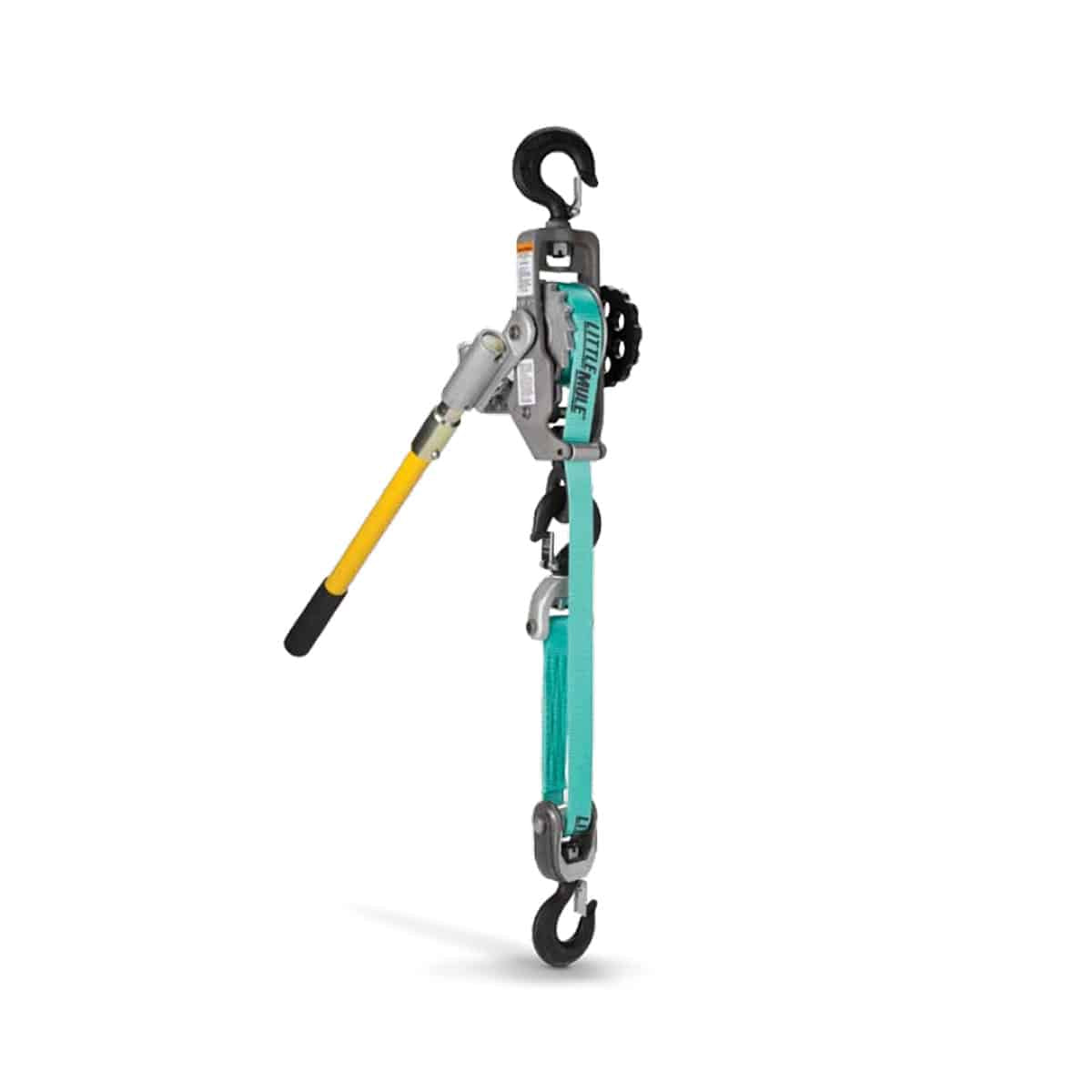

300DA LINEMANS WEB STRAP HOT HOIST with HOT STICK RINGS

Product Features

• Lineman's strap hoist puller from the Little Mule Series 300DA — adjustable capacity, convertible between single-line and double-line use
• Easily removable sheave block with a quick disconnect design lets you convert the hoist for double or single line
• Non-conductive handle: fiberglass handle with polyester webbing provides added non-conductive material when using proper hot line handling techniques
• Easy access directional lever — easier to reach with a gloved hand, and hot stick compatible
• Overload feature: the solid fiberglass handle, with replaceable tips, bends to alert the operator of a possible overload
• Redesigned hook profile allows quick engagement and easy removal; all hooks swivel 360° and are equipped with latches
• Positive load holding — double interlocking pawls assure one pawl is engaged at all times, with dual pawl springs for reliability
• Double pawl system gives multiple pawl stops for precise load positioning
• Safe design: thumbscrews securing the handle are pegged and cannot be backed out, unlike competitive units using butterfly nuts that can let the handle come loose
• Open design allows easy inspection and cleaning
• Lightweight and rugged: cast aluminum frame, corrosion-resistant stainless steel springs and frame shafts, stainless-plated roller shafts, all rotating shafts on bronze bushings for reduced wear
• Self-storing web drum for compact operation, with a non-conductive winding wheel for quick take-up of slack webbing
• Meets or exceeds a minimum 4:1 design factor and all requirements of ASME/ANSI B30.21 — all units tested at 125% of rated load
• Lifetime warranty

Specifications

• SKU: CM04142W
• Price: 676.08
• Weight: ~ 12.50 lbs
• Dimensions: 24.00 L x 7.00 W x 5.00 H (inch)
• Style: Lineman's Strap Hoist / Puller
• Brand: Columbus McKinnon
• Product Line: Little Mule
• Series: 300DA
• Cat. No.: 04142W
• Rated Capacity: 3/4 ton (1,500 lb) and 1-1/2 ton (3,000 lb) — see note on configurations
• Lift Height: 9 ft and 4.25 ft — see note
• Headroom: 17 in and 25 in — see note
