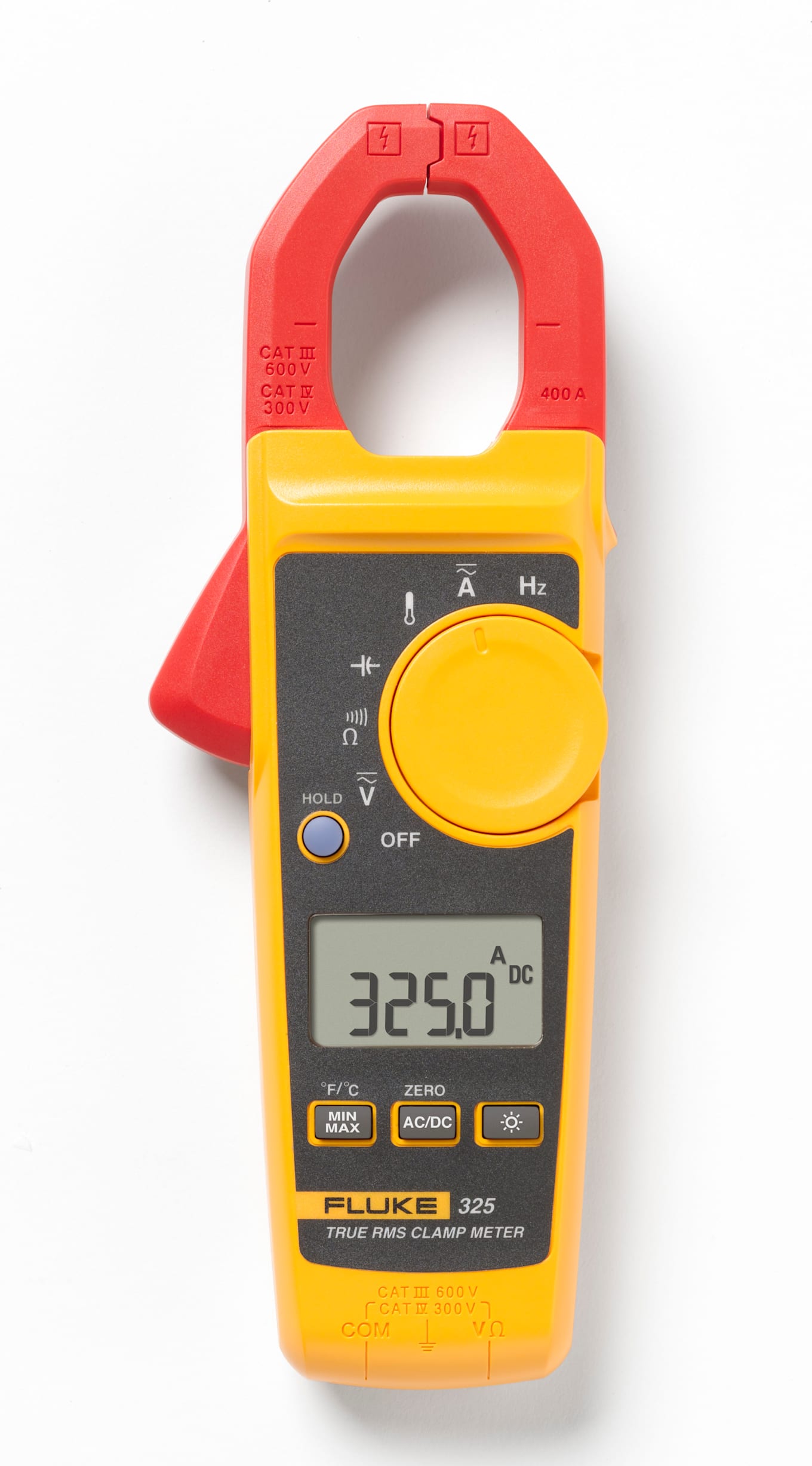

400A AC/DC TRUE RMS CLAMP METER W/TEMP

Product Features

• True-RMS AC/DC clamp meter — the top model in Fluke's 320 Series
• True-RMS gives accurate readings on non-linear loads, where an averaging meter reads low
• Measures AC and DC current up to 400 A
• Measures AC and DC voltage up to 600 V
• Resistance to 40 kΩ with continuity detection
• Temperature measurement via included K-type thermocouple, 14 °F to 752 °F (-10 °C to 400 °C)
• Capacitance measurement up to 1000 µF
• Frequency measurement 5 Hz to 500 Hz — useful for checking portable generators
• DC current measurement suits battery backup and solar storage work
• Slim, rugged body fits into tight cable compartments
• Large backlit display for reading in dark panels
• Min/Max and Hold functions
• CAT IV 300 V / CAT III 600 V safety rating
• Replaces several separate tools, so there's less to carry
• Backed by a two-year warranty

Specifications

• Style: Clamp Meter (True-RMS, AC/DC)
• Brand: Fluke
• Series: 320
• Model: 325
• AC Current Range: 40.00 A / 400.0 A
• AC Current Accuracy: 2% ± 5 digits (45–65 Hz); 2.5% ± 5 digits (65–400 Hz)
• DC Current Range: 40.00 A / 400.0 A
• DC Current Accuracy: 2% ± 5 digits
• AC Voltage Range: 600.0 V
• AC Voltage Accuracy: 1.5% ± 5 digits
• DC Voltage Range: 600.0 V
• DC Voltage Accuracy: 1.0% ± 5 digits
• Resistance Range: 400.0 Ω / 4000 Ω / 40.00 kΩ
• Resistance Accuracy: 1.0% ± 5 digits
• Continuity Threshold: ≤ 30 Ω
• Capacitance Range: 0–100.0 µF / 100–1000 µF
• Frequency Range: 5.0 Hz – 500.0 Hz
• Temperature Range: 14 °F – 752 °F (-10 °C – 400 °C)
• AC Response: True-RMS
• Display: Backlit
• Functions: Min/Max, Hold
• Safety Rating: CAT IV 300 V / CAT III 600 V
• Batteries: (2) AAA, included
• Includes: 325 clamp meter, TL75 test leads, Type K thermocouple, (2) AAA batteries, soft case, user manual
• Country of Origin: Malaysia
• Warranty: 2 years
• CA Prop 65: Warning applies
• Fluke Benefit: True-RMS current, voltage, temperature, capacitance, and frequency in one CAT IV 300 V clamp that fits a tight panel
