5/8" SHACKLES

Product Features

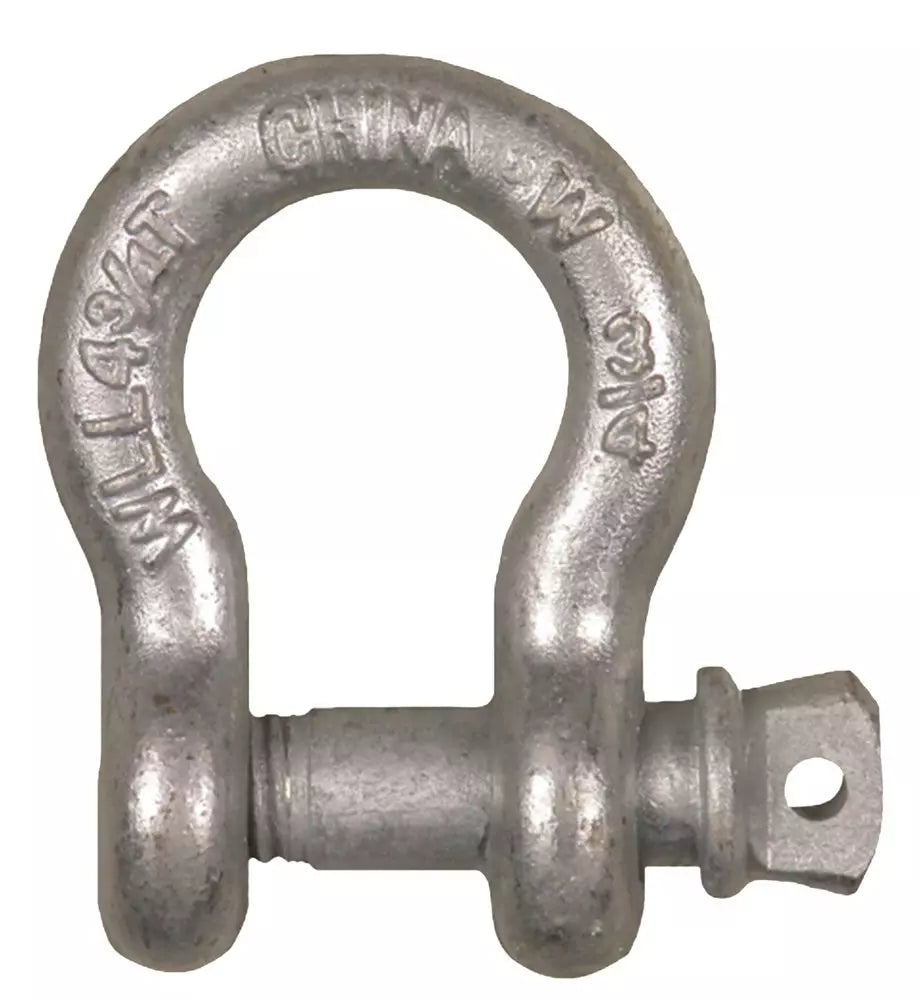

• 5/8" screw-pin anchor (bow) shackle for rigging and lifting
• Carbon-steel body with 3/4" dia alloy-steel screw pin, heat-treated and tempered
• Galvanized finish helps protect against rust
• Anchor (bow) shape allows side loading and multiple sling connections
• Connects fittings to slings, wire rope, and rigging lines
• Working load limit of 3.25 tons for the 5/8" size
• Meets federal specification RR-C-271 (Type IVA, Grade A, Class 2)
• Screw-pin design for quick, tool-free connection and removal

Specifications

• SKU: LIF541-1035
• Price: 34.03
• Weight: ~1.4 lbs – 1.44 lbs
• Dimensions: 4.2" L × 3.3" W × 1.5" H
• Brand: Lift-All
• Catalog Number: 541-1035
• Type: Screw-Pin Anchor (Bow) Shackle
• Size: 5/8"
• Working Load Limit: 3.25 ton
• Pin: 3/4" dia alloy
• Material: carbon-steel body, alloy pin (heat-treated)
• Finish: galvanized
