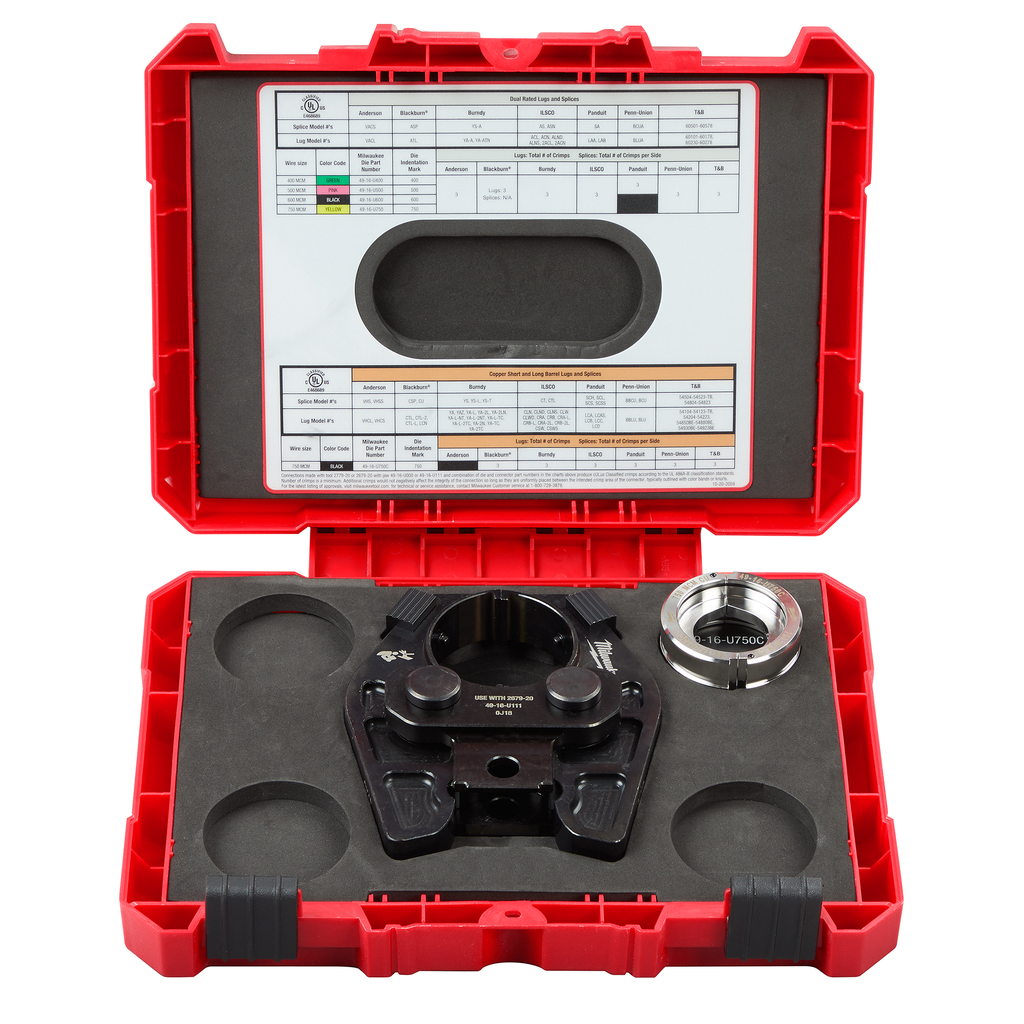

750 MCM Copper 6T U Style Die (MIL49-16-750C)

Product Features

• 750 MCM Cu/Al expanded crimping jaw with a 750 MCM Cu 6T U-style die — the most accurate way to crimp large-diameter connectors
• Produces cULus-classified crimps to UL 486A-B standards for #8–750 MCM copper and dual-rated connectors
• Compatible with Anderson, Blackburn®, Burndy, Ilsco, Panduit, Penn-Union, and Thomas & Betts connectors
• Milwaukee U-Style dies feature vivid wire-size markings and industry-standard color markings, and imprint the wire size onto the connector after crimping — easy install and inspection, no cross-referencing
• Proprietary jaw holds the connector for instant alignment
• 100% inspected for critical dimensions and serialized to ensure crimp quality
• Stainless-steel finish protects against corrosion
• Expands the M18™ FORCE LOGIC™ 600 MCM Crimper's capacity to 750 MCM

Specifications

• SKU: MIL49-16-750C
• Price: $849.37
• Weight: 6.1 lbs
• Dimensions: 7.50 L x 4.20 W x 1.80 H inch
• Style: Crimping Jaw + U-Style Die (FORCE LOGIC™ accessory)
• Brand: Milwaukee
• Model / Part Number: 49-16-750C
• Crimp Capacity: #8 – 750 MCM Copper & Dual-Rated Aluminum
• Die Type: 6T U-Style (750 MCM Cu)
• Classification: cULus / UL 486A-B
• Jaw Finish: Stainless steel
• Compatible Tool: M18™ FORCE LOGIC™ 600 MCM Crimper (2679-20 / 2679-22)
