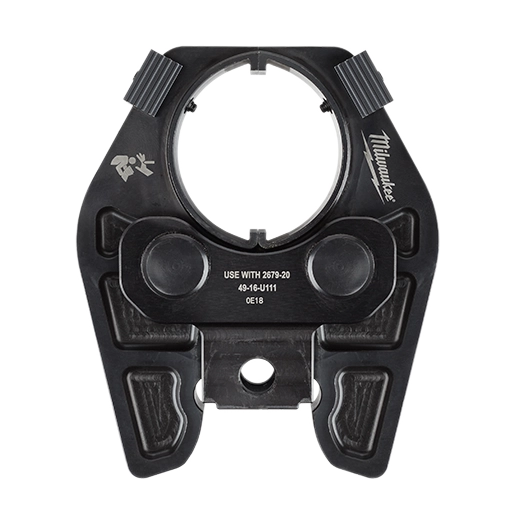

750 MCM Cu/Al Crimping Jaw with 400-750 MCM Al 6T U Style Dies

Product Features

• 750 MCM Cu/Al crimping jaw with 400-750 MCM aluminum 6T U-style dies for the M18 FORCE LOGIC 600 MCM crimper
• Produces cULus-classified crimps to UL 486A-B standards for #8-750 MCM copper and dual-rated connectors
• Compatible with Anderson, Blackburn, Burndy, Ilsco, Panduit, Penn-Union, and Thomas & Betts connectors
• Revolutionary jaw design holds the connector for instant alignment
• U-style dies feature vivid wire-size markings and industry-standard color coding
• Dies imprint wire size onto the connector after crimping - eliminates cross-referencing
• 100% inspected for critical dimensions and serialized; stainless-steel finish resists corrosion
• For use with the 2679-20 / 2679-22 M18 FORCE LOGIC 600 MCM crimper

Specifications

• Brand: Milwaukee
• Catalog Number: 49-16-750A
• Type: 750 MCM Cu/Al Crimping Jaw + Al Die Kit
• Jaw: 49-16-U111 expanded 750 MCM
• Range: #8 AWG to 750 MCM copper; 400-750 MCM aluminum (6T U dies)
• Standard: cULus per UL 486A-B
• Finish: stainless steel
• Jaw Dimensions: 4.48 in L x 3.3 in W x 5.38 in H
• For Use With: 2679-20 / 2679-22 M18 FORCE LOGIC 600 MCM crimper
• Includes: (1) 49-16-U111 750 MCM Cu/Al jaw plus 400/500/600/700/750 MCM aluminum 6T U-style dies
• WARNING (California Prop 65): may expose you to chemicals known to the State of California to cause cancer and reproductive harm.
