750 SELF CONT HYPRESS

Product Features

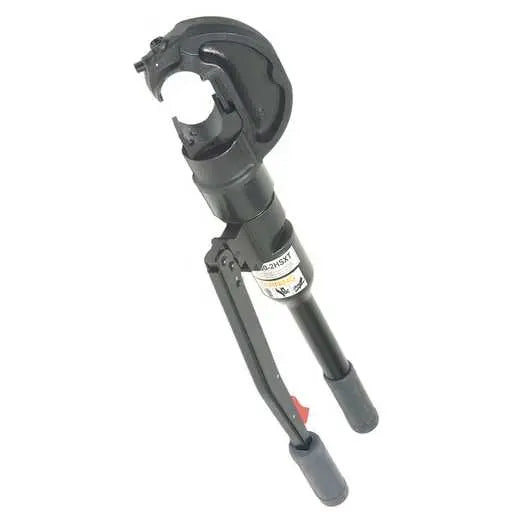

• Y750HSXT HYPRESS self-contained hydraulic hand-operated crimping tool - 12-ton crimp force
• Wide 1.65" mouth handles virtually all compression applications
• C-shaped head rotates 355 degrees relative to the handle for easy positioning
• Patented rapid-advance pump for faster crimps; audible pop-off pressure-relief valve
• Handle trigger drain for convenient ram retraction; comfort-grip handles
• Accepts all BURNDY U dies for #14-750 kcmil Cu/Al and #4-556.5 kcmil ACSR conductors
• Ideal for tapping, splicing, terminating overhead lines, HYGROUND grounding, and NEC/Navy cable
• Supplied in a durable carrying case with a U-die compartment (dies sold separately)

Specifications

• SKU: BURY750HSXT
• Price: 3134.13
• Weight: ~13.5 lbs
• Dimensions: 23.96" L x 8.71" W x 2.86" H; 12 ton
• Brand: BURNDY
• Catalog Number: Y750HSXT
• Type: HYPRESS Self-Contained Hydraulic Crimping Tool (hand-operated)
• Crimp Force: 12 ton
• Die Type: U die
• Capacity: #14-750 kcmil Cu, #8-750 kcmil Al, #4-556.5 kcmil ACSR
• Operating Pressure: 10,000 psi
• Head Rotation: 355 degrees
