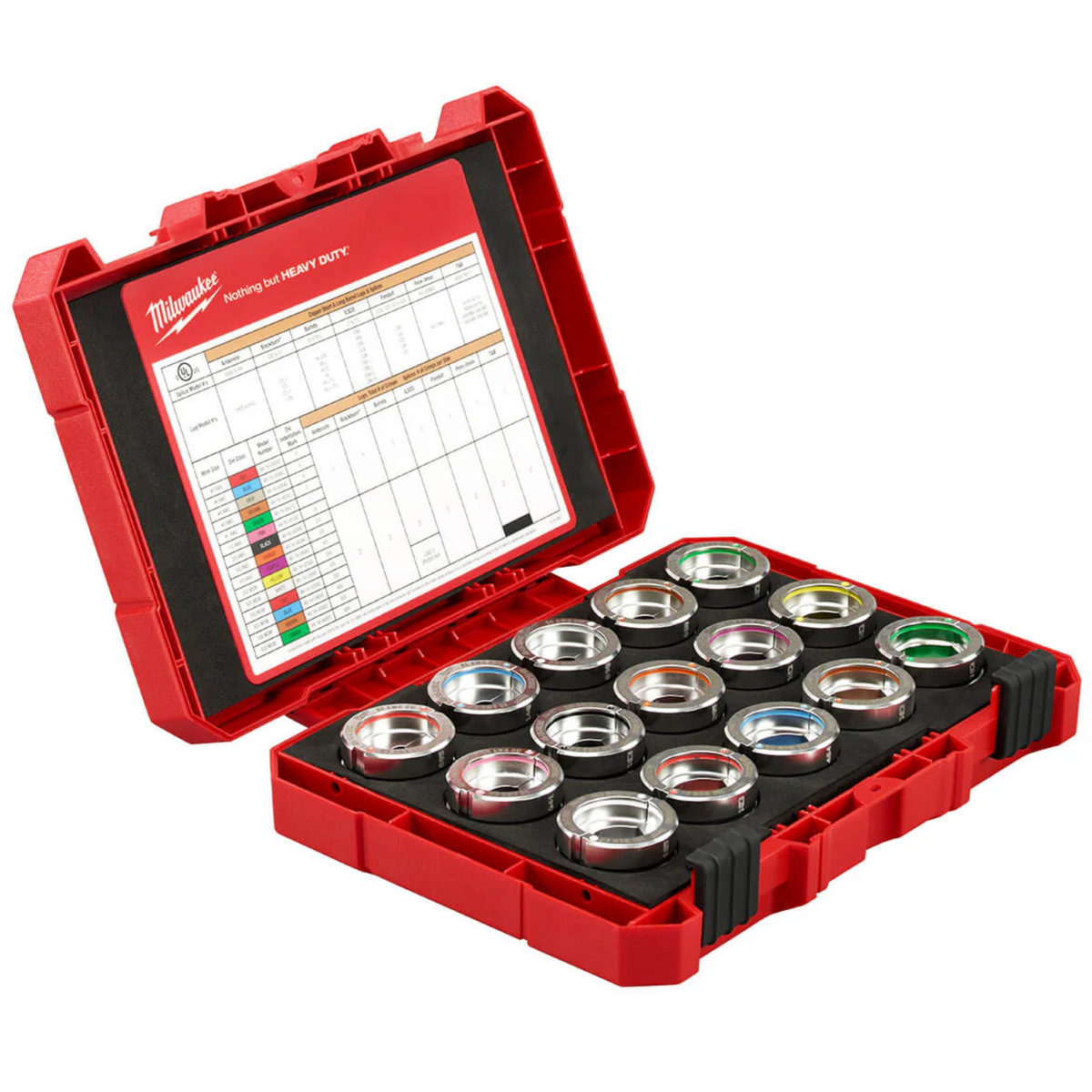

#8 - 600 MCM Copper U Style Die Kit

Product Features

• EXACT U-Style copper die kit covering #8 through 600 MCM for the M18 FORCE LOGIC 600 MCM Crimper
• Produces cULus classified crimps to UL 486A-B for #8 - 600 MCM Cu (and #8-350 MCM dual-rated) connectors
• Compatible with dual-rated Anderson, Blackburn, Burndy, Ilsco, Panduit, Penn-Union, and Thomas & Betts connectors
• Vivid wire-size markings and industry-standard color coding for fast, correct die selection
• Imprints the wire size onto the finished connector to eliminate cross-referencing and speed inspection
• 100% inspected for critical dimensions and serialized to ensure crimp quality
• For use with the 2679-20 crimper and 49-16-U000 600 MCM U-Style jaw; ships in a carrying case

Specifications

• Brand: Milwaukee
• Catalog Number: 49-16-KITC
• Type: U-Style Die Kit (Copper)
• Material Crimped: Copper
• Range: #8 to 600 MCM
• Die Style: U-Style (600 MCM system)
• Tool Compatibility: 2679-20 M18 FORCE LOGIC 600 MCM Crimper with 49-16-U000 jaw
• Includes (15 dies): #8, #6, #4, #2, #1, 1/0, 2/0, 3/0, 4/0, 250, 300, 350, 400, 500, 600 MCM
• Certification: cULus classified crimps per UL 486A-B
• UPC: 045242339372
• WARNING (California Prop 65): may expose you to chemicals known to the State of California to cause cancer and reproductive harm.
