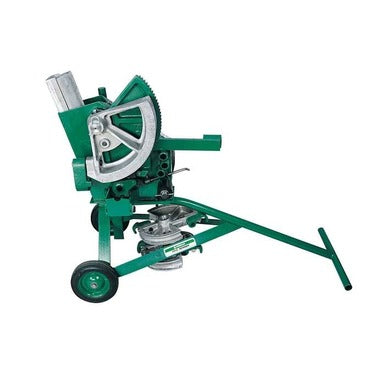

BENDER,MECHANICAL (1818)

Product Features

• Mechanical bender covering 3/4" through 2" EMT, 1/2" through 1-1/4" IMC, and 1/2" through 1-1/2" rigid — one bender for the full common range
• Also bends 2" aluminum rigid conduit
• Durable ratchet mechanism makes larger bends manageable by hand
• Bypass the ratchet for fast, direct bending on smaller sizes
• Bending degree indicator and charts on the tool for fast, accurate bends without guesswork
• Steel main frame needs no tie bar to support the bending system
• Carriage minimizes deflection when bending larger conduit
• Friction button automatically retains the shoe and ratchet segment while you load conduit; the lock system releases automatically
• No storage box required — all shoes store right on the bender, along with follow bars, rollers, and pins
• The complete loaded unit can be chained and locked to a post for jobsite security
• Heavy-duty undercarriage with wheels for moving it around the job
• Frame unit accepts existing 1818 shoes, cushion roller, and follow bars — so older shoes carry over
• Steel and aluminum construction built for years of service
• Handle is not included: use a 5 ft section of 1" rigid conduit as the handle

Specifications

• Style: Mechanical Conduit Bender
• Brand: Greenlee
• Model / Cat. No.: 1818
• Series: 1818
• Construction: Steel and aluminum
• Conduit Capacity — EMT: 3/4 in – 2 in
• Conduit Capacity — IMC: 1/2 in – 1-1/4 in
• Conduit Capacity — Galvanized Rigid: 1/2 in – 1-1/2 in
• Conduit Capacity — Aluminum Rigid: 2 in only
• Centerline Bend Radius — EMT: 5-3/32 in (129.4 mm) – 9-3/16 in (233.4 mm), for 3/4 in – 2 in shoe sizes
• Centerline Bend Radius — IMC: 2-21/32 in (67.5 mm) – 7-3/8 in (187.3 mm), for 1/2 in – 1-1/4 in shoe sizes
• Centerline Bend Radius — Rigid: 2-21/32 in (67.5 mm) – 9 in (228.6 mm), for 1/2 in – 1-1/2 in shoe sizes
• Undercarriage: Heavy-duty with wheels

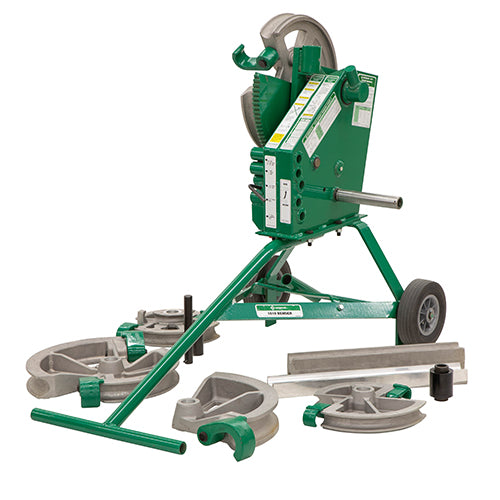

• Includes: Undercarriage unit (36247), roller pin unit (36697), cushioned roller unit (18681), 1/2"–1" Rigid/IMC shoe (18827), 1-1/4" Rigid/IMC and 1-1/2" Rigid shoe (18828), 3/4"–1" EMT shoe (18830), 1-1/4"–1-1/2" EMT shoe (18831), 1-1/4"–1-1/2" EMT follow bar (18642), 2" EMT shoe (18832), 2" EMT follow bar (18636), roller follow bar guide (36296), retainer clip (18772), wheels (51509, qty 2)
• Handle: Not included
• Replacement Parts: 1818G1 frame and undercarriage unit only; 19988G non-flat wheel
• UPC: 0783310221920
• Greenlee Benefit: Bends the full 3/4"–2" EMT range with all shoes included and stored on the bender itself — chain the whole loaded unit to a post at the end of the day
