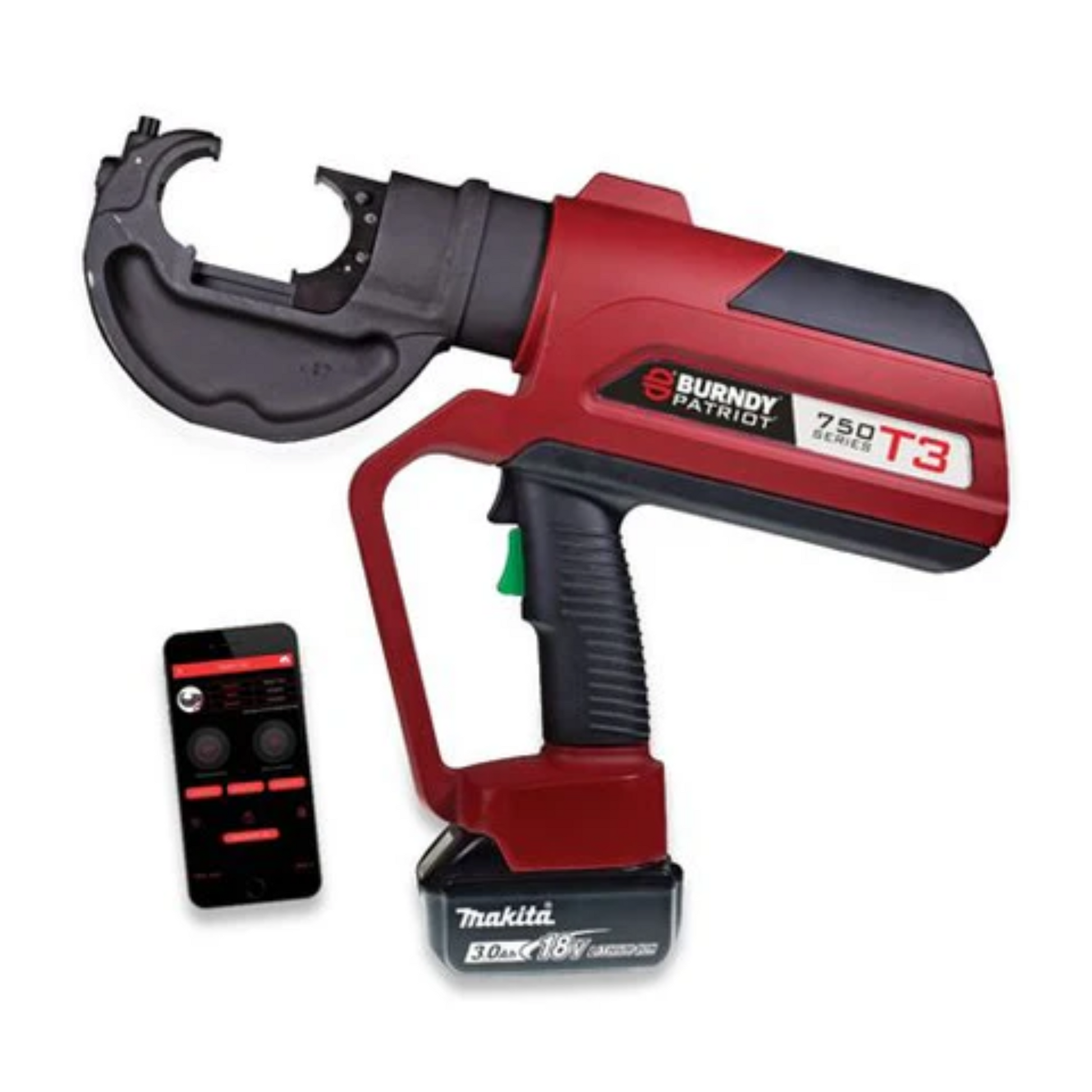

BURNDY 12 TON LI-ION 18V CRIMPER

Product Features

• PATRIOT Series C-head, battery-actuated, self-contained hydraulic crimper delivering 12 tons of force for tension sleeves, taps, terminals, splices, and HYGROUND compression grounding connectors
• Wide crimping range in a single tool: copper #14 solid through 750 kcmil, aluminum #8 solid through 750 kcmil, ACSR #4 AWG through 556.5 kcmil, plus ground rods 1/2" to 1"
• 1.65" jaw opening handles a broad range of connector sizes with fewer die changes
• Patented T-Track alignment guide, the only crimper designed for BURNDY HYGROUND and other asymmetrical connectors
• 355-degree head rotation for easy positioning in tight or overhead work areas
• Accepts Makita 18V Li-Ion batteries from 2.0Ah to 6.0Ah; roughly 30-minute recharge on the included charger
• Ergonomic overmolded grip for comfort during repeated crimps
• Delivers UL Listed connections when used with the BURNDY Engineered System

Specifications

• Brand: BURNDY
• Series: PATRIOT
• Catalog Number: PAT750LI
• Type: C-Head, Battery-Actuated, Self-Contained Hydraulic Crimper
• Crimp Force: 12 ton
• Jaw Opening: 1.65 in
• Head Rotation: 355 degrees
• Die Type: U dies
• Crimping Range - Copper: #14 sol. to 750 kcmil
• Crimping Range - Aluminum: #8 sol. to 750 kcmil
• Crimping Range - ACSR: #4 AWG to 556.5 kcmil
• Ground Rods: 1/2 in to 1 in
• Battery: 18V 3.0Ah Lithium-Ion (2 included); accepts Makita 2.0Ah-6.0Ah
• Charge Time: approx. 0.5 hr
• Overall Length: 15-3/4 in
• Includes: (2) 18V Li-Ion batteries, 120V AC charger, tool-retention lanyard, U-die compartment, hard carrying case
• UPC: 781810505175
• WARNING (California Prop 65): This product can expose you to chemicals including lead and lead compounds, known to the State of California to cause cancer and reproductive harm.
