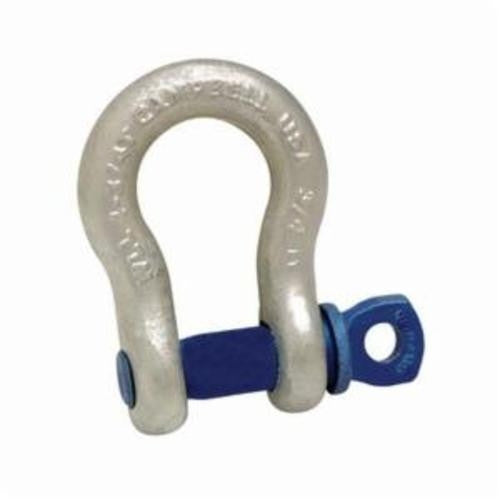

Campbell Screw Pin Anchor Shackle, 1-1/2 In, 17 Ton, Galvanized (5412435)

Product Features

• Drop-forged carbon steel body with a galvanized alloy steel screw pin
• Galvanized to ASTM A-153 to inhibit rust
• Design factor of 6 to 1
• Meets Federal Specification RR-C-271, Type IVA, Grade A, Class 2
• Working load limit, size, maker, date code and USA permanently marked on every shackle

Specifications

• Brand: Campbell
• Catalog Number: 5412435
• Weight: 16 lb
• Dimensions: 10 x 7 x 3.5 in (estimated, packaged)
• Shackle Type: Screw pin anchor shackle, 419 series
• Size: 1-1/2 in
• Working Load Limit: 17 US ton
• Material: Drop-forged carbon steel, hot-dip galvanized
