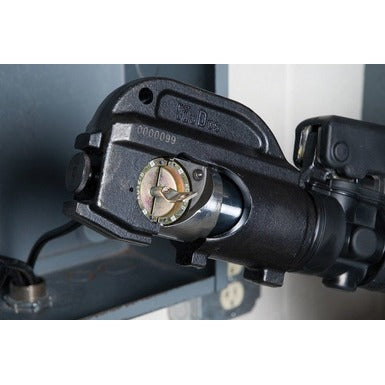

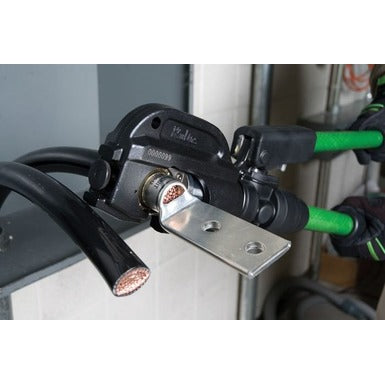

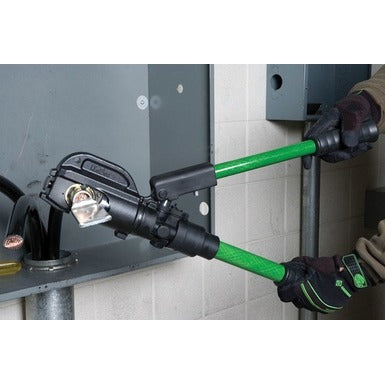

CRIMP TOOL,12 TON

Product Features

• Hand-held, self-contained 12-ton manual hydraulic crimping tool for crimping aluminum and copper connectors onto electrical cable
• Accepts Greenlee and industry-standard "U"-style 12-ton dies (dies purchased separately) for wide connector compatibility
• Two-speed ram advances quickly, then shifts to lower speed to power through and complete the crimp
• Push-button die-release lets you insert and remove dies quickly and easily
• Open "C"-style head for easy placement on conductors and connectors
• Strong, lightweight fiberglass handles for durability and reduced fatigue
• Crimps a full range from 8 AWG to 750 kcmil
• UL (US & Canada) / cUL listed; ships in a durable molded carrying case

Specifications

• Style: Manual Hydraulic Crimping Tool (12-Ton)
• Brand: Greenlee
• Model / Part Number: HKL1232
• Crimping Force: 12 ton (24,000 lb / 106 kN)
• Crimping Range: 8 AWG – 750 kcmil (copper lugs & splices)
• Die System: Industry-standard 12-ton "U"-style dies (sold separately)
• Head: Open "C"-style, ~1.3 in wide
• Length: 24-1/4 in (616 mm)
• Width: 5.9 in (150 mm)
• Weight: 14.4 lb (6.5 kg)
• Handle Material: Fiberglass (PVC grip)
• Handle Color: Green / Black
• Approvals: UL (US & Canada), cUL
• Includes: Molded carrying case
• UPC: 783310235217
• Greenlee Benefit: Two-speed 12-ton crimping with U-style die compatibility and lightweight fiberglass handles
