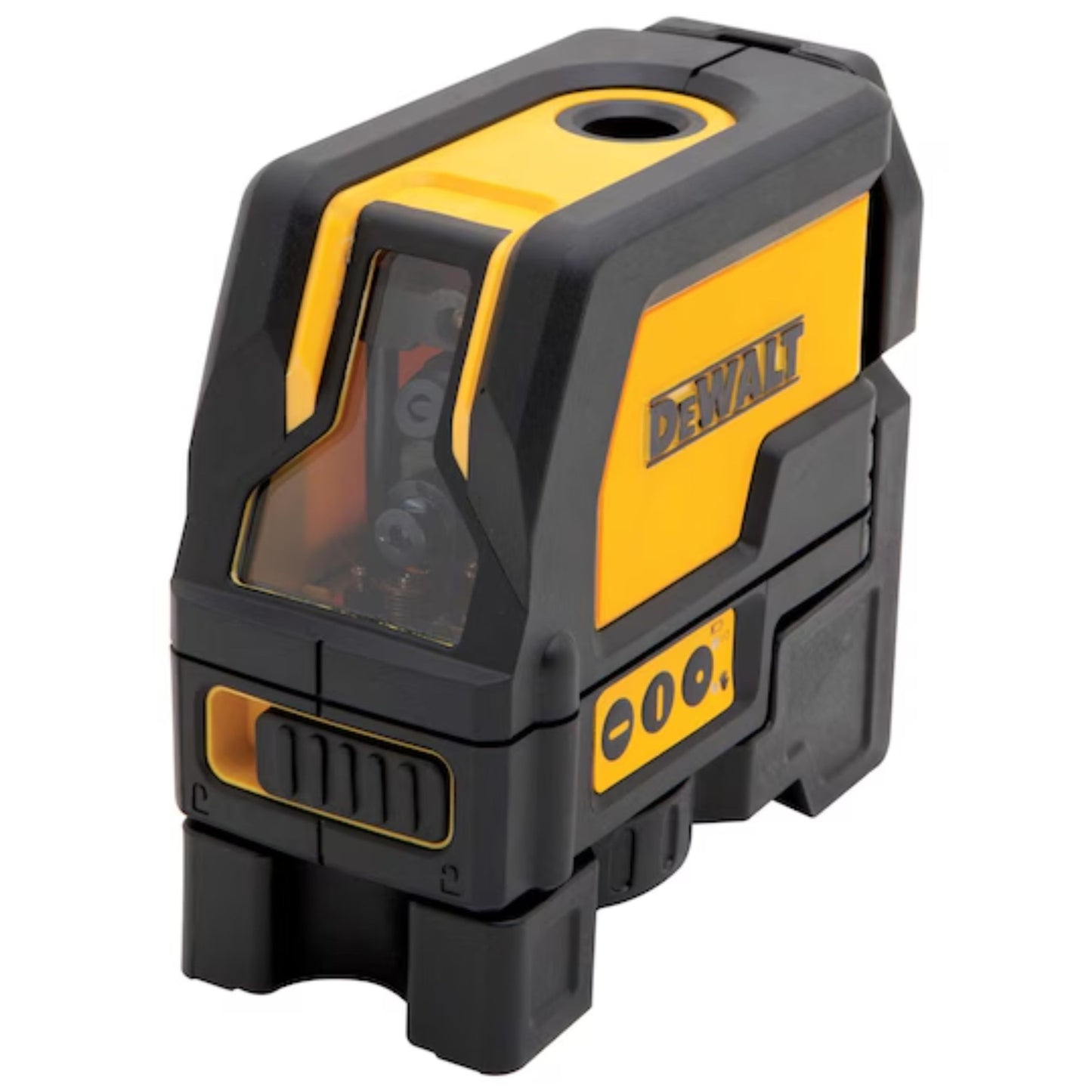

DEWALT DW0822 Red Cross Line + 2-Spot Laser Level (165 ft, IP54)

The DEWALT DW0822 Red Cross Line + Spot Laser Level is a versatile self-leveling laser built for finish carpenters, electricians, drywall installers, tile setters, and remodelers who need accurate horizontal, vertical, and plumb references on the job site. With 4 beams (cross lines plus 2 spot dots), a range up to 165 ft with detector, IP54 ingress protection, and an integrated magnetic pivoting base, the DW0822 mounts where you need it and stays accurate when you bump it.

Key Features & Benefits

• Bright Cross Line Projection: Horizontal and vertical lines crossed at 90° for level and plumb reference — ideal for cabinet installation, tile layout, and trim work.
• Dual Plumb Spot Beams: Up and down spot dots transfer points between floor and ceiling — perfect for HVAC duct hangers, lighting fixtures, and wall partitions.
• Down Beam with Raised Clearance: Visible down dot allows alignment over floor track for accurate wall layout — critical for metal stud and drywall installation.
• Integrated Magnetic Pivoting Base: Front and rear magnets snap flush onto metal track, steel studs, and Unistrut — no clamps or extra mounting hardware required.
• 1/4"-20 Threaded Mount: Mounts on standard tripods and laser accessories for elevated work.
• Self-Leveling Mechanism: Automatically corrects within ±4° — accurate readings without manual adjustment.
• ±1/8" Accuracy at 30 ft: Professional-grade accuracy for finish carpentry, cabinetry, and tile installations.
• 165 ft Working Range (with detector): Long-distance line transfer for framing and large open spaces.
• IP54 Dust & Water Resistance: Built to survive job site dust, debris, and weather exposure.
• 8-Hour Runtime: All-day battery life on 3 standard AA batteries (included).

Common Applications

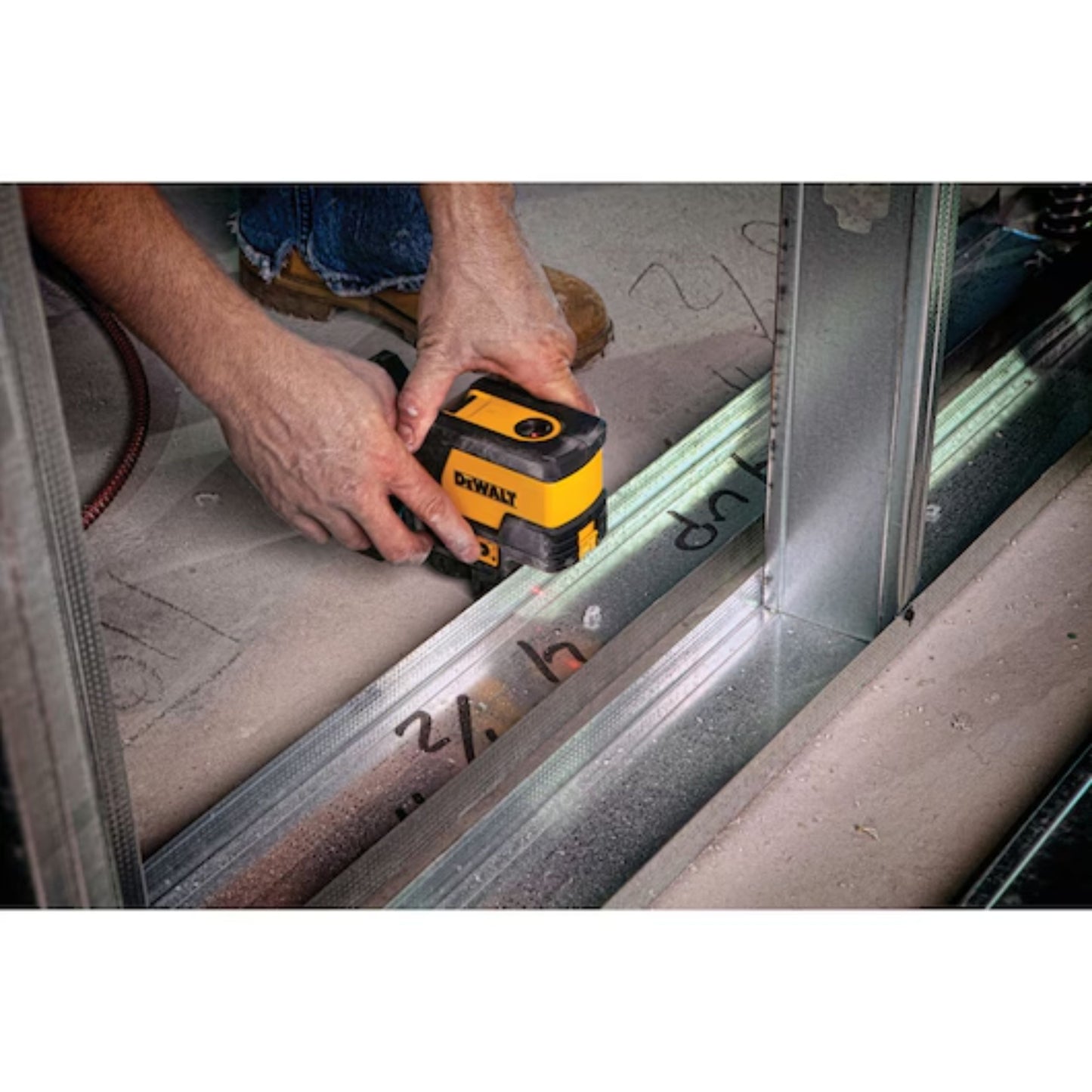

• Drywall & Metal Stud Layout: Snap onto metal track and transfer wall lines accurately
• Tile Installation: Set level reference lines for floor and wall tile
• Cabinet & Trim Work: Level upper cabinets, install chair rail and crown molding
• Electrical & HVAC: Plumb point transfer for conduit runs, fixture mounting, and duct work
• General Carpentry & Remodeling: Level and plumb references for any framing or finish task

Specifications

• Model / SKU: DEWALT DW0822
• Laser Type: Cross Line + 2 Spot (4 beams total)
• Beam Color: Red
• Working Range: Up to 165 ft (with detector)
• Accuracy: ±1/8" at 30 ft
• Leveling: Self-leveling
• Power Source: 3 × AA alkaline batteries (included)
• Battery Run Time: Up to 8 hours
• Ingress Protection: IP54 (dust and water resistant)
• Mounting: Integrated magnetic pivoting base + 1/4"-20 thread mount
• Housing: Plastic with rubber overmold
• Weight: 52.8 oz (3.3 lbs)
