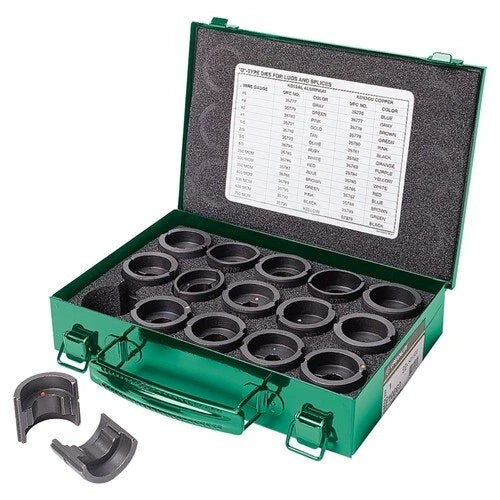

DIE KIT, 12-TON AL "U"

Product Features

• Complete 12-ton "U" style crimping die kit for aluminum connectors from 6 AWG to 750 kcmil
• Fifteen color-coded dies covering the full range — one kit instead of buying dies one at a time
• Color coding on each die matches the connector, so the right die is easy to identify on a crowded job
• Dedicated aluminum dies — correct crimp geometry for aluminum lugs and splices
• Carrying case included to keep the set together and organized
• For use with Greenlee 12-ton crimping tools and the RK1550 fitted with the 48802 die adapter
• Aluminum die kit and copper die kit are separate — this is the aluminum set

Specifications

• Style: Crimping Die Kit, "U" Style
• Brand: Greenlee
• Catalog No.: KD12AL
• Tool Capacity: 12 ton
• Cable Type: Aluminum
• Cable Range: 6 AWG – 750 kcmil (MCM)
• Die Style: "U" style
• Number of Dies: 15
• Sizes Included: 6, 4, 2, 1, 1/0, 2/0, 3/0, 4/0 AWG; 250, 300, 350, 400, 500, 600, 750 kcmil
• Die Part Numbers: 35777 (6 AWG, gray), 35779 (4 AWG, green), 35780 (2 AWG, pink), 35791 (1 AWG, gold), 35792 (1/0, tan), 35793 (2/0, olive), 35794 (3/0, ruby), 35785 (4/0, white), 35786 (250, red), 35787 (300, blue), 35788 (350, brown), 35789 (400, green), 35795 (500, pink), 35790 (600, black), 35796 (750, yellow)
• Compatible Tools: EK1230 / EK1230L, EK1240 / EK1240L, HK1230, HK1240, RK1230, RK1240, HKL1230 / HKL1232, E12CCX; RK1550 with 48802 die adapter
• Includes: 15 aluminum "U" style dies, (1) carrying case
• Crimping Tool: Not included — dies only
• UPC: 783310102618
• Greenlee Benefit: Every aluminum die from 6 AWG to 750 kcmil, color-coded and in one case — no hunting for the size you're missing
