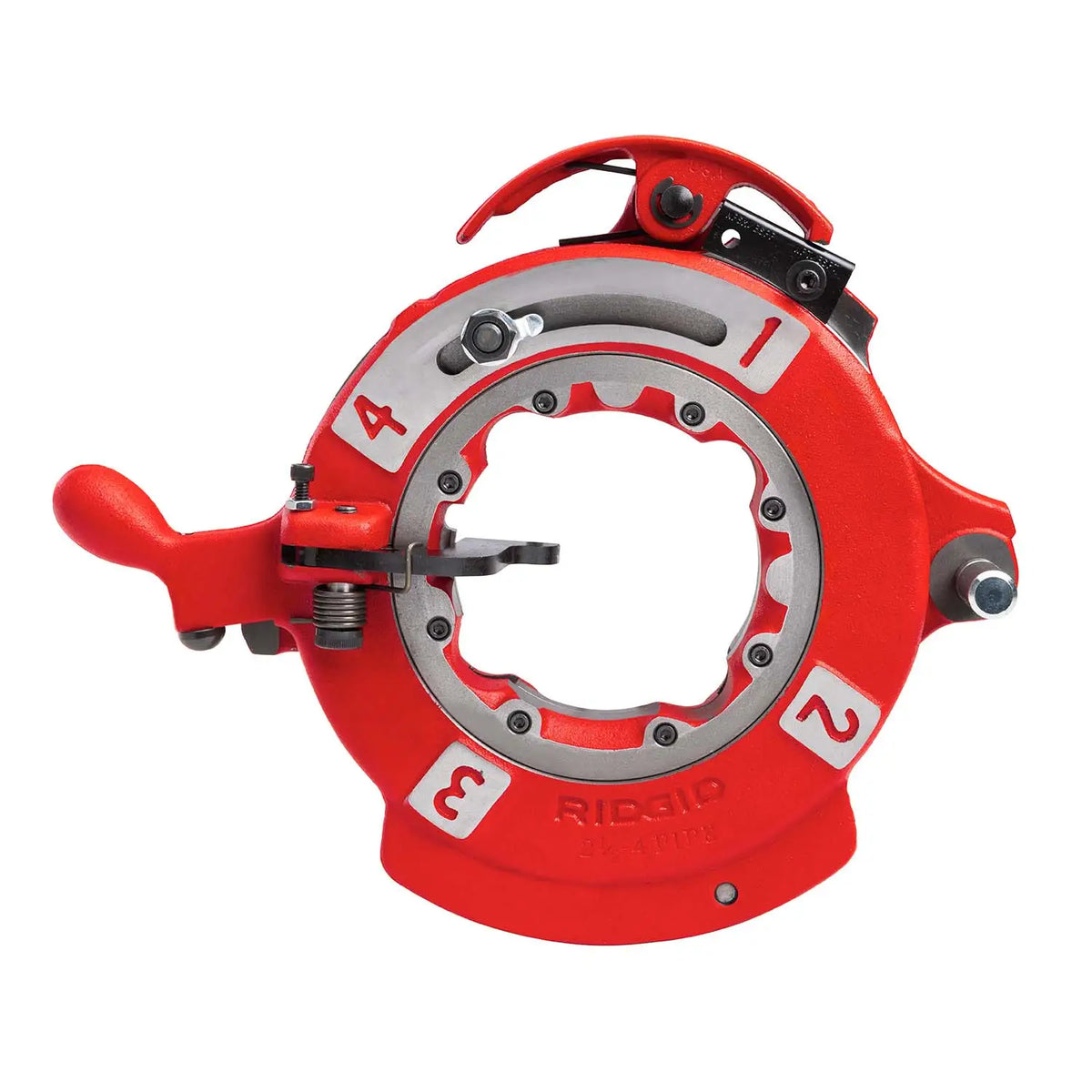

DIEHEAD, 714 SO RECD L/DIES

Product Features

• Model 714 receding self-opening die head, right-hand, 2-1/2"-4" NPT (dies not included)
• Designed for use with the RIDGID Model 1224 pipe threading machine
• Self-opening design with automatic release for a repeatable thread length
• Reduces die wear and prevents over-threading for consistent results
• Adjustable to cut tapered or straight threads (NPT/NPSM or BSPT/BSPP)
• Through-head oiling keeps dies and workpiece properly lubricated
• Threads 2-1/2"-4" pipe at 12 RPM
• Uses RIDGID universal dies (sold separately)

Specifications

• Brand: RIDGID
• Model: 714
• Catalog Number: 26152
• Type: Receding Self-Opening Die Head (RH, less dies)
• Thread Type: NPT
• Pipe Capacity: 2-1/2 in to 4 in (64-102 mm)
• For Use With: Model 1224 threading machine
• Oiling: through-head
• Dimensions: 14 in x 14 in x 7 in
• Weight: 33 lb
• UPC: 095691261526
• Country of Origin: United States
