DIES, 141 NPT HS SS

Product Features

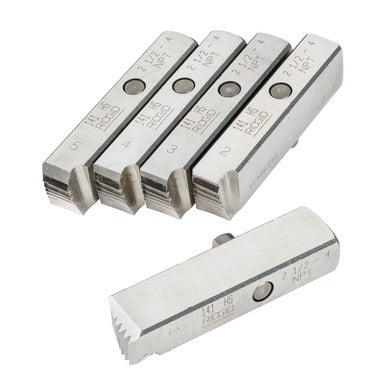

• High-speed steel pipe dies purpose-built for threading stainless steel pipe
• Right-hand NPT threads, 2-1/2 in. through 4 in. nominal pipe size at 8 TPI
• Designed for use with RIDGID Model 141 receding geared pipe threaders
• High-speed steel holds an edge in work-hardening stainless where alloy dies dull quickly
• Receding die design backs the dies out at the end of the thread for clean, consistent starts
• Produces professional-grade tapered pipe threads on large-diameter stainless runs
• Can also cut NPSM straight mechanical threads by rotating the threader guide post 180°
• Built to hold up under demanding production workloads
• Backed by the RIDGID Full Lifetime Warranty
• Part of RIDGID's pipe threading die and diehead line
• M18 FUEL™ 3/8 in. mid-torque impact wrench delivering 600 ft-lbs of nut-busting torque
• Most compact in its class at 6 in. long — reaches stubborn fasteners without disassembling surrounding components
• Best power-to-weight ratio in the category at 5.0 lb (tool with 5.0 Ah pack)
• POWERSTATE™ brushless motor for fast removal speeds and long motor life
• 4-Mode DRIVE CONTROL™ with preset RPM and IPM levels, selectable from one button on the tool
• Mode 4 AUTO SHUT-OFF™ caps torque at 35 ft-lbs for hand-tight fastening without overtightening
• Mode 4 Bolt Removal Control delivers full torque, then drops RPM once the bolt breaks loose to prevent dropped fasteners
• Tri-LED lighting surrounds the anvil for bright, shadow-free visibility
• Friction ring (hog ring) anvil for quick, secure socket changes
• REDLINK PLUS™ intelligence protects against overload, overheating, and over-discharge
• On-board fuel gauge shows remaining charge
• Bare tool — compatible with all M18™ batteries and chargers
• Well suited to lug nuts, suspension hardware, machine fasteners, and corroded bolts
• Part of the M18 FUEL™ impact wrench line

Specifications

• Style: Pipe Threading Dies (Receding, Geared Threader)
• Brand: RIDGID
• Model / Cat. No.: 70640
• Fits: RIDGID Model 141 receding geared pipe threaders
• Nominal Pipe Size: 2-1/2 in. – 4 in.
• Threads Per Inch: 8 TPI
• Thread Type: NPT (National Pipe Taper)
• Thread Direction: Right hand
• Die Material: High-speed steel (H.S.)
• Application: Stainless steel pipe
• Set Contents: One set of dies for the 2-1/2"–4" range
• Weight: ~3.0 lb (one reseller lists 3.6 lb — verify)
• Country of Origin: United States
• UPC / GTIN: 095691706409
• Warranty: RIDGID Full Lifetime Warranty against defects in material and workmanship
• RIDGID Benefit: High-speed steel dies that thread 2-1/2"–4" stainless pipe in a Model 141 geared threader without the premature dulling of alloy dies
• Style: Cordless Mid-Torque Impact Wrench
• Brand: Milwaukee
• Model / Cat. No.: 2960-20
• Series: M18 FUEL™
• Voltage: 18 V
• Motor: POWERSTATE™ brushless
• Anvil: 3/8 in. square with friction ring
• Nut-Busting Torque: 600 ft-lbs
• Fastening Torque: Not listed — verify against Milwaukee spec sheet
• Speed (Mode 1 / 2 / 3 / 4): 0–1,250 / 0–1,950 / 0–2,575 / 0–2,575 RPM
• Impact Rate (Mode 1 / 2 / 3 / 4): 0–900 / 0–2,100 / 0–3,100 / 0–3,100 IPM
• Mode 4 Auto Shut-Off Torque: 35 ft-lbs
• Length: 6.0 in
• Width: 2.74 in
• Height: 8.12 in
• Weight: 5.0 lb (with 5.0 Ah battery)
• Battery Compatibility: All M18™ REDLITHIUM™ packs
• Battery / Charger Included: No (bare tool)
• Country of Origin: Not listed — verify
• UPC: Not listed on source page — verify
• Warranty: Milwaukee 5-year limited tool warranty
• Milwaukee Benefit: 600 ft-lbs of breakaway torque in a 6 in., 5 lb body — mid-torque power that still fits where compact wrenches have to go

Order today for same-day pickup from our Houston or San Antonio locations.

We offer same-day pickup at both of our retail locations, as well as delivery upon request.
