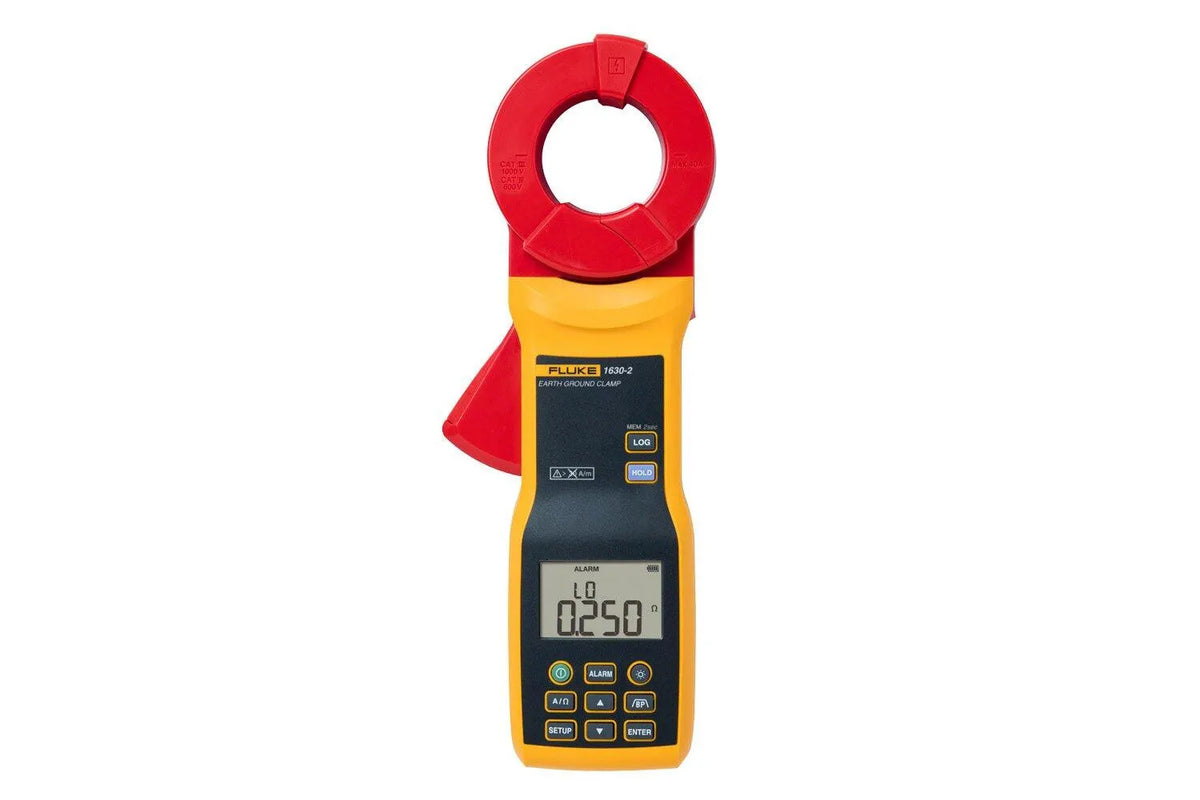

Fluke 1630-2 FC Earth Ground Loop and Leakage Clamp (1630-2 FC)

Product Features

• Stakeless earth ground clamp measures earth ground loop resistance on multi-grounded systems using a dual-clamp jaw
• Eliminates disconnecting parallel grounds and driving auxiliary test stakes, saving time and reducing risk
• Performs ground tests in hard-to-reach places: inside buildings, on power pylons, and where soil access is unavailable
• Identifies AC leakage currents without disconnecting the earth ground stake from the system
• Automatic data logging at preset intervals stores up to 32,760 measurements
• User-defined high/low alarm limits and a selectable band-pass filter remove unwanted noise
• Heavy-duty jaw stays in alignment and calibration in harsh industrial environments
• Fluke Connect wireless system links the clamp to a smartphone or tablet with cloud storage

Specifications

• SKU: FLUFLUKE-1630-2 FC
• Price: $2,469.99
• Brand: Fluke
• Model: 1630-2 FC
• Type: Stakeless Earth Ground Loop & Leakage Clamp Meter
• Earth Ground Loop Resistance: 0.025 ohms to 1500 ohms
• AC Leakage Current: yes
• Max Voltage to Earth Ground: 1000 V
• Frequency Range: 40 Hz to 1 kHz
• Ingress Protection: IP30 (jaw closed)
