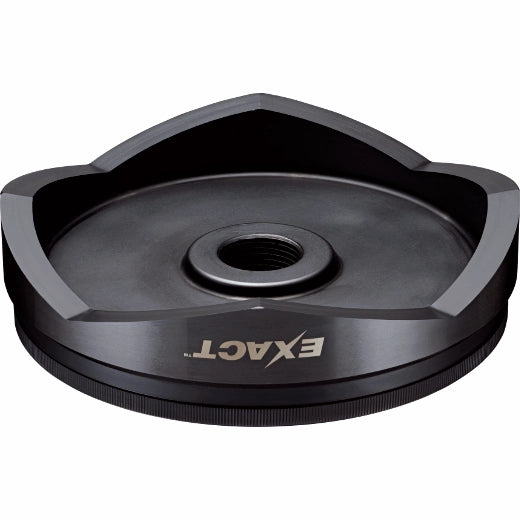

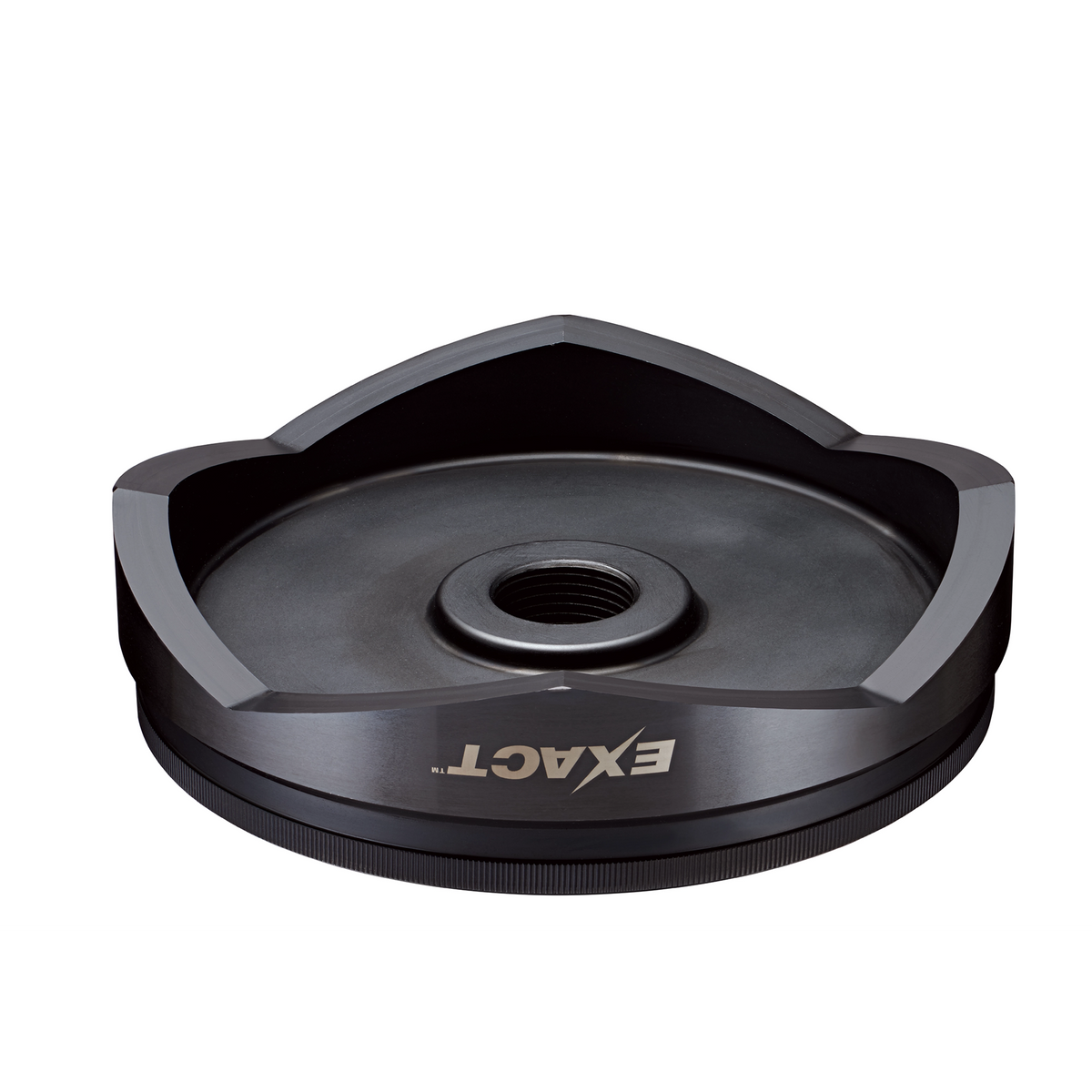

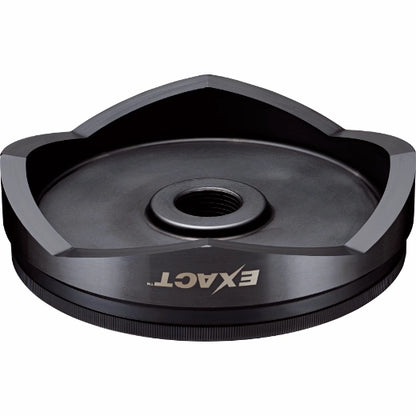

EXACT 6" Punch

Product Features

• EXACT™ knockout punch that cuts 6 in. conduit holes in enclosures, panels, and boxes
• Robust enough for both mild steel and stainless steel
• Three-tooth punch geometry for clean cutting and optimal slug removal
• Engraved crosshairs on the mating die align precisely with pre-drawn layout crosshairs
• Slug removal ports in the die help clear the slug after the punch
• Large size ID markings on punch and die make selection fast in a full set
• No spacers required — one less step and one less loose part
• Notches on the punch body give a positive grip when threading and de-threading
• Works with Milwaukee knockout tools, and with competitive knockout tools using adapter 49-16-2684
• Part of the Milwaukee Knockout System / M18™ FORCE LOGIC™ punching line

Specifications

• Style: Knockout Punch (Conduit Punch)
• Brand: Milwaukee
• Model / Cat. No.: 49-16-2689
• Series: EXACT™ (M18™ FORCE LOGIC™ knockout system)
• Nominal Conduit Size: 6 in
• Nominal Hole Size: 6-5/8 in
• Actual Hole Diameter: ~6.63 in (Tool Nut lists punch size 6.006 in — verify)
• Punch Shape: Round
• Tooth Geometry: Three-tooth
• Material Capacity — Mild Steel: 10 gauge
• Material Capacity — Stainless Steel: 12 gauge
• Slug Type: Splitting
• Spacers Required: No
• Draw Stud Included: No
• Pieces: 1
• Width: 6.75 in
• Height: 2.07 in
• Weight: ~7.8 lb
• Adapter for Competitive Tools: 49-16-2684 (sold separately)
• UPC: 045242350452
• Warranty: Not covered by tool warranty — verify current Milwaukee terms
• Milwaukee Benefit: Three-tooth EXACT punch that cuts a clean 6" conduit hole in mild or stainless steel with no spacers and engraved crosshair alignment
