Greenlee

Greenlee CABLE FEEDER ASSEMBLY (6810)

Greenlee CABLE FEEDER ASSEMBLY (6810)

SKU:GRN6810

Regular price $11,727.83
Regular price $11,727.83 Sale price $11,727.83
Sale Sold out
Shipping calculated at checkout.

    Low stock

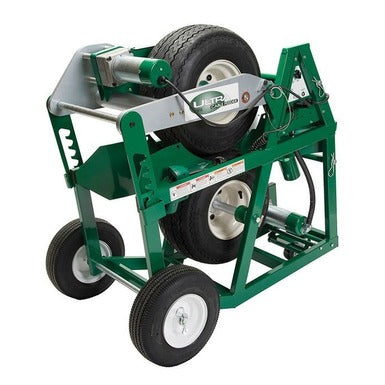

    Greenlee model 6810 is the Cable Feeder. Feeds cable at variable speeds to match the speed of cable pulling tool. Accommodates cable ranging in size up to 3.5 IN (88.9mm) in diameter.

    • Manufacturer part number: 6810
    • GTIN (UPC): 0783310055648
    • Maximum Tractive Force: Single Cable: 200 lbs(.9kN) All Cables 800 lbs (3.5kN)
    • Load: Single Cable : approx. 890 N (200 lb) All Cables : approx. 3560 N (800 lb)
    • Cable Size: 8 x 250 MCM cable 6 x 500 MCM cable 5 x 750 MCM cable
    • Cable Type: Electrical Cable
    • Voltage Rating: 115 Volts
    • Speed: 4-36 feet per minute. (1.2-11 meters per minute)
    • Prime Mover Specification: Tire Pressure Carlisle Turf Glide : 1.5 bar (22 psi) Carlisle USA Trail : 3.8 bar (50 psi)
    • Type: Feeder Assembly
    • Accessory: 445 UPC 24821 Foot Switch
    • Application: Puller Feeding
    • Capacity: Approx. 11,300 kg (25,000 lb)
    • Amperage Rating: 15 Amps
    • Now with new tires for improved traction with low friction cables
    • Sets up easily and can be operated by just one person
    • Dual motors drive each wheel for traction on both sides of the cable
    • Comes with pendant and toggle switch
    • An optional foot switch is available to control feeding
    • Two cable loading methods: top-loading and end-loading
