Green Cross Line 4-Points Laser

Product Features

• Brightest green laser in its class, optimized for distance — high-intensity green diodes give superior visibility up to 125'
• Vertical and horizontal lines plus 4 points to level, align, plumb, and square from one setup
• The 4 points allow quick transfers from floor to ceiling and fast squaring on complex layouts
• All-day runtime: 9+ hours of continuous use on the included M12™ REDLITHIUM™ CP3.0 battery — no more alkaline swaps mid-layout
• Accuracy of +/- 1/8" at 33 ft
• 125 ft working range, extending to 165 ft with a detector
• Integrated magnetic bracket with micro-control that pivots on the plumb point for easy, fast alignment
• Amplified rare earth magnets hold strong and will not slide on steel studs, even with jobsite vibration
• Integrated hang hole makes setup quick in any environment
• 210° horizontal fan angle and 165° vertical fan angle for broad line coverage
• 2" plumb point access and self-leveling within +/- 4° of tilt
• IP54 rated for water and dust resistance, with 1m impact resistance
• 1/4-20 and 5/8-11 thread mounts for tripods and poles
• Compatible with all M12™ batteries as part of the industry-leading M12™ system

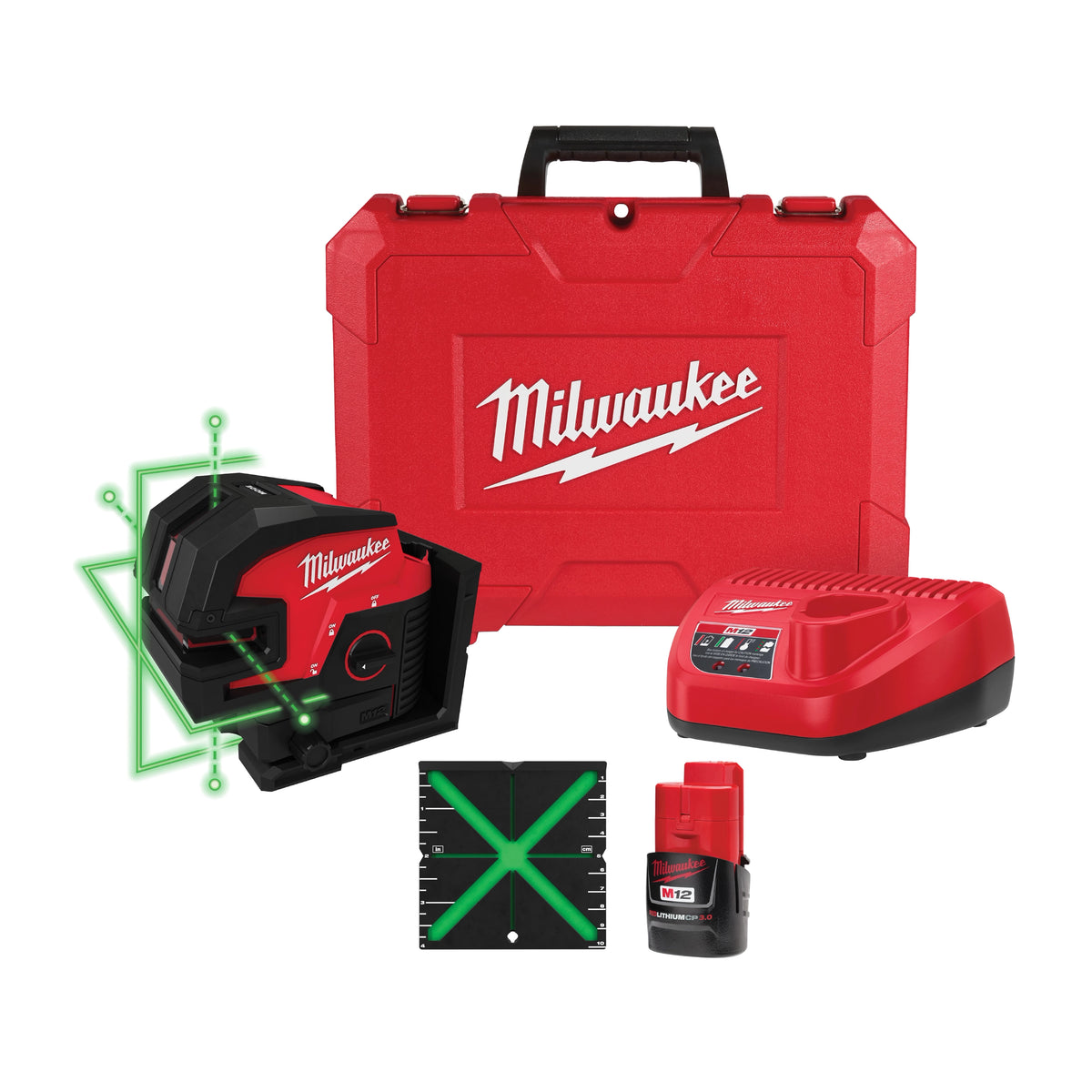

• Includes: 3624-20 laser, M12™ REDLITHIUM™ CP3.0 battery (48-11-2430), M12™ charger (48-59-2401), laser target (48-35-1111), and carrying case

Specifications

• Brand: Milwaukee
• Catalog Number: 3624-21
• System: M12™ (12V cordless)
• Laser Color: Green
• Beam Configuration: Cross line (vertical + horizontal) plus 4 points
• Working Range: 125 ft (165 ft with detector)
• Accuracy: +/- 1/8" @ 33 ft
• Fan Angle: 210° horizontal, 165° vertical
• Self-Leveling Range: +/- 4° tilt
• Plumb Point Access: 2"
• Runtime: 9+ hours continuous (M12™ CP3.0)
• Mounting: Amplified rare earth magnets, hang hole, 1/4-20 and 5/8-11 threads
• Ingress Protection: IP54
• Impact Rating: 1m
• Warranty: 3-year tool, 2-year battery
• Includes: Laser, CP3.0 battery, charger, laser target, carrying case
