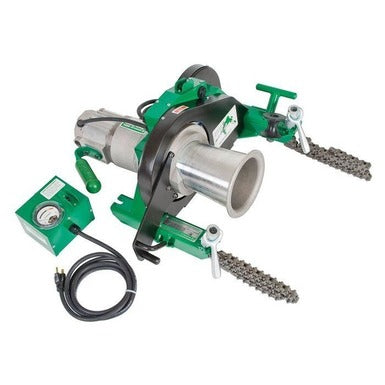

Greenlee 6001 6000LB Cable Puller
Greenlee 6001 6000LB Cable Puller
SKU:GRN6001
Regular price
$7,712.33
Regular price
$7,712.33
Sale price
$7,712.33
Unit price
/
per
Shipping calculated at checkout.
Share
Product Features
- Pull up to 6,500 lbs. (28.9kN) with less than 27 lbs. (120N of operator effort with these powerful cable pullers
- Unique floor mounting attachment for quick, reliable setup
- Leaf-type mounting chains won't twist when tightening
- Heat-treated steel serrated gripper feet for secure mounting to conduit
- Force Gauge included to constantly monitor the pull
- Right-angle sheave allows the operator to stand out of the direct line of force
- Audio alarm high force warning and circuit breaker shut off at maximum force for added safety
- Tapered capstan and patented rope guidance system for better control of the rope when feeding onto the capstan
Specifications
| Sub Brand | Super Tugger |
| Load | 6500.000 LB (28.900 KN) Maximum, 4500.000 LB (20.000 KN) Continuous |
| Cable Type | Electrical cable |
| Voltage Rating | 125 Volts |
| Mounting | Floor mount / Chain mount |
| Prime Mover Specification | Double-Braided Composite Rope 3/4 IN |
| Includes | Force Gauge And Vise Chains |
| Standard | Super Tugger Cable Puller Power Unit, Includes force gauge and vise chains |
| Type | Puller Assembly |
| Accessory | 35098 UPC 35098 Double-Braided Composite Rope 3/4 IN x 300 FT (19.100 MM x 91.000 M), 35100 UPC 35100 Double-Braided Composite Rope 3/4 IN x 600 FT (19.100 MM x 182.000 M), 35101 UPC 35101 Double-Braided Composite Rope 3/4 IN x 1,200 FT (19.100 MM x 365.0 M) |
| Application | Electrical Cable pull |
| Capacity | No load : 5 m/min (16.5 ft/min) 8900 newtons (2000 lb) : 3.4 m/min (11 ft/min) 17.8 kN (4000 lb) : 2.3 m/min (7.5 ft/min) |
| Drive Motor | 1-1/2 hp, 120 VAC, 16 Hz, 20 Amp |
| Pulling Force | 6500.000 LB (28.900 KN) Maximum, 4500.000 LB (20.000 KN) Continuous |
| Pulling Rope | 3/4 IN (19.100 MM) Double-Braided Composite, Rated At 26000 LB (115.600 KN) |
| Pulling Speeds | 16.5 FTPM At No Load, (8.800 KN) - 11 (3.4) At 2000 LB, (17.900 KN) - 7.5 (2.3) At 4000 LB, (26.700 KN) - 6 (1.8) At 6000 LB |
| Amperage Rating | 15 Amp |
