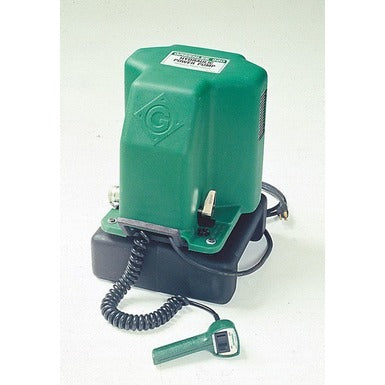

Greenlee Electric Hydraulic Pump with Pendant 980

Product Features

• For use with all Greenlee benders
• Useable oil volume: 6 quarts (5
• Handy pendant advance control on 980 and 980-22PS
• Low voltage pendant coupled to solid state motor controls eliminates contact arcing for greater reliability and longer life
• Automatic or manual ram return selector valve provides more control from the pendant switch
• Molded enclosure protects pump, motor and circuitry in tough working environments
• Use with single-hose hydraulic systems with spring-return rams

Specifications

• Horsepower: 1-1/2 HP (1.12 kW)
• Operation: 120 VAC, 1-1/2 HP (1.12 kW)
• Pressure Rating: 10,000 PSI (700 bar)
• Voltage Rating: 120 VAC
• Model: 980
• Number of Stages: 1
• Flow Rate:
  • 0 PSI — 300 in³/min nominal, 275 min
  • 100 PSI — 225 in³/min nominal, 200 min
  • 8000 PSI — 56 in³/min nominal, 54 min
• Phase: 1
• Mounting: None
• Casing Material: Plastic
• Includes: Pendant
• Type: Hydraulic Pump
• Application: For use with all Greenlee benders
• Capacity:
  • 10,000 PSI (700 bar)
  • 250 cu-in (4.0 L) per minute rapid advance
  • 54 cu-in (0.9 L) per minute at full pressure
• Replacement Part: 34369 Seal Kit
• Useable Oil Capacity: 6.0 qt (5.7 L)
