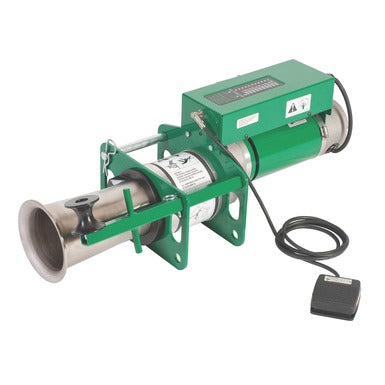

Greenlee UT10-2S Puller Assembly

Greenlee UT10-2S Puller Assembly

GRNUT10-2S

$8,046.26
$8,046.26 $8,046.26
Sale Sold out
Shipping calculated at checkout.

    Product Features

    • The Ultra Tugger 10,000-pound puller has two speeds and can shift from high speed to low speed with a double-tap motion on the foot pedal.
    • High speed can pull up to 16 feet per minute up to 4,000 pounds, while low speed can pull 8,000 pounds at 9 feet per minute.
    • The capacity peaks at 10,000 pounds at a rate of 6 feet per minute

    Specifications

    Sub Brand Name Name Ultra Tugger
    Load 0 - 6500.000 LB (0 - 28.900 KN) Continuous Operation, 6500.000 - 8000.000 LB (28.900 - 35.600 KN) 15 Minutes ON/15 Minutes OFF, 8000.000 - 10000.000 LB (35.600 - 44.500 KN) Momentary
    Cable Type Electrical Cable
    Voltage Rating 115 Volts
    Prime Mover Specification Required Rope: 7/8" diameter, double-braided, polyester composite Average Breaking Strength: 143 kN (32,000 lb) minimum
    Standard Puller Assembly
    Type Puller Assembly
    Application Electrical Cable pull
    Capacity The no-load low speed is 9 FT/MINT and can be used on loads up to 8000 LB where the speed will be 6 FT/MINT, or a momentary peak capacity of 10000LB
    Amperage Rating 20 Amp
