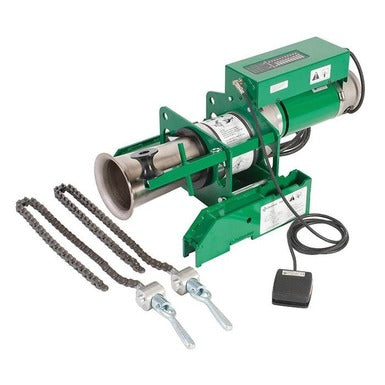

Greenlee UT10 Puller Package with Chain Mount 6901

Product Features

• 2 Speed Ultra Tugger (UT10-2S) is a one-stop-shop cable pulling and fishing tool: The only 2 speed puller on the market that can shift from high speed/low load pulling to low speed/high load pulling with a simple double tap motion on the foot pedal control switch
• Use for cable pulls requiring high as well as low pulling loads
• The no-load high speed is 16 FT/MINT and is best suited for loads up to 4000 LB where the speed will be 12 FT/MINT
• The no-load low speed is 9 FT/MINT and can be used on loads up to 8000 LB where the speed will be 6 FT/MINT, or a momentary peak capacity of 10000LB
• 2-Speed motor that delivers the fastest pulling time for all pulling needs over the widest (10000 LB) range
• Strong, rugged motor designed specifically for both big and small cable pulling applications up to 10000 LB
• Easy control features for increased productivity: On-board force gauge provides visual communication of pulling force and speed changes
• Quick speed change from high speed to low-speed by simply double tapping foot pedal
• Removable foot pedal for convenience
• Sets up in less than 2 minutes and can be used in every pulling situation
• This combination of speed and versatility can increase your productivity, equaling more pulls in a day and delivering greater benefit to your bottom line

Specifications

• Sub Brand Name: Ultra Tugger
• Load: 0–6500 lb (0–28.9 kN) continuous operation; 6500–8000 lb (28.9–35.6 kN) 15 minutes ON / 15 minutes OFF; 8000–10000 lb (35.6–44.5 kN) momentary
• Cable Type: Electrical Cable
• Voltage Rating: 115 Volts
• Mounting: Chain Mount
• Prime Mover Specification: Required rope — 7/8" diameter, double-braided polyester composite; Average Breaking Strength — 143 kN (32,000 lb) minimum
• Type: Puller Assembly
• Application: Electrical Cable Pull
• Capacity: No-load low speed of 9 ft/min; usable on loads up to 8000 lb (6 ft/min) with a momentary peak capacity of 10,000 lb
• Amperage Rating: 20 Amp
