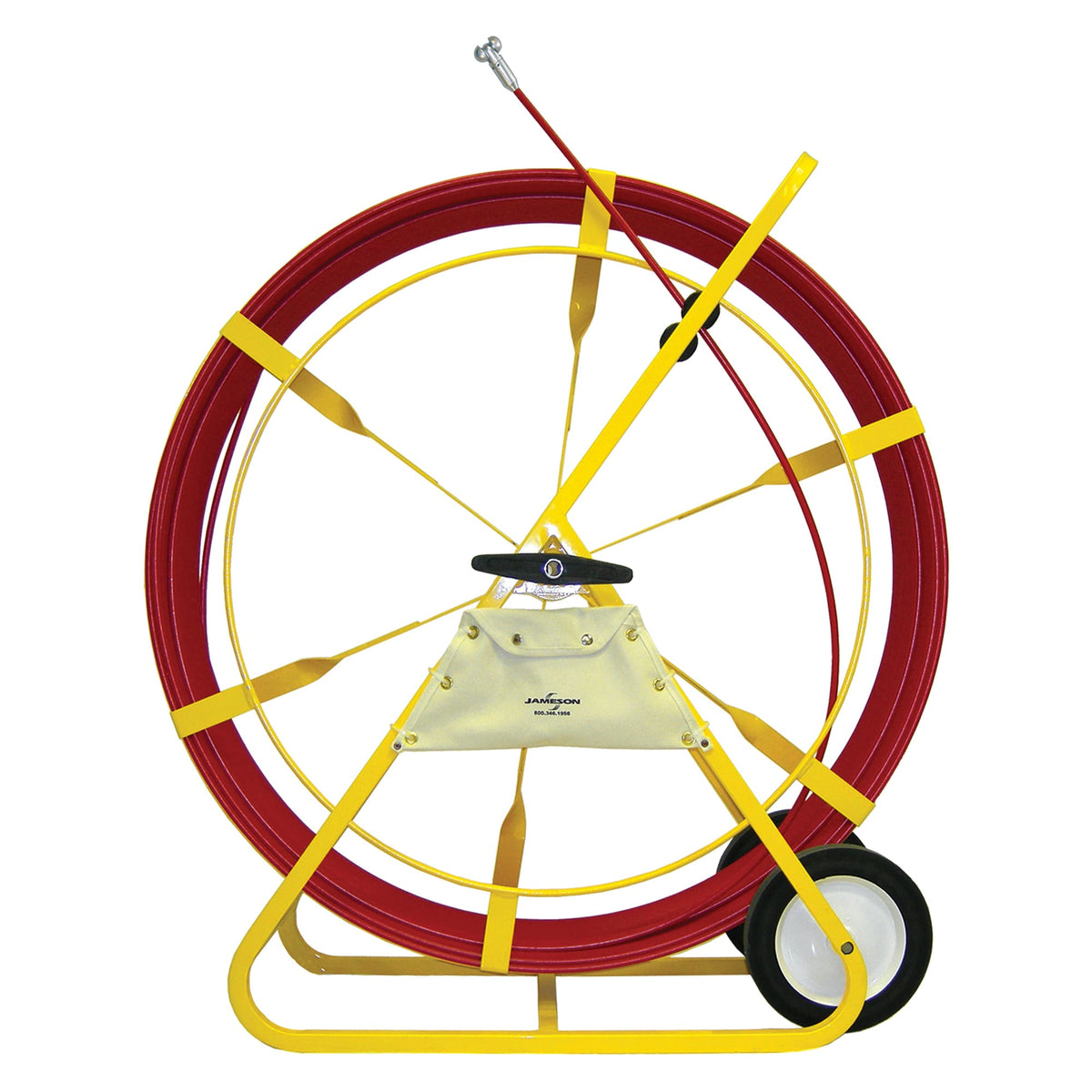

Jameson Duct Hunter Traceable Rodder, 7/16 In. X 800 Ft. (13-716-800M)

Product Features

• 800 ft. of 7/16 in. traceable fiberglass rod marked every 5 ft. (metric every 1 m)
• Copper trace wire in the rod core is energized by a transmitter and located with a hand-held receiver at depths up to 10 ft.
• Traces ductile iron, plastic, tile or concrete pipe without excavation
• 9 in. bend radius; for conduit with a 4 in. or larger inside diameter
• Ships with a male end ferrule, pulling eye and accessory kit attached to the frame

Specifications

• Brand: Jameson
• Catalog Number: JAM13-716-800M
• Manufacturer Part Number: 13-716-800M
• Rod Diameter: 7/16 in.
• Rod Length: 800 ft.
• Pull / Tensile Strength: 800 lb.
• Minimum Bend Radius: 9 in.
• Recommended Conduit: 4 in. and larger
• Trace Depth: Up to 10 ft.
• Weight: 147 lb (estimated, packaged)
• Dimensions: 47.5 x 44 x 20 in
