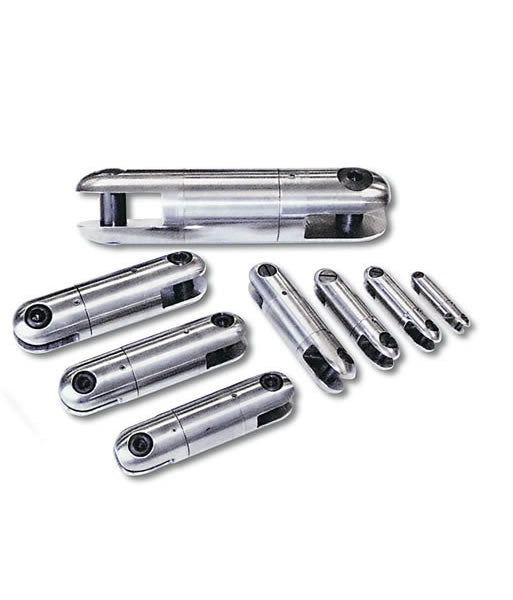

Line Swivel - 10,000 lbs

Product Features

• Heavy-duty line swivel that prevents the pulling line from transferring twist to the cable during a pull
• Dual-bearing design: a thrust bearing handles the tensile (pulling) load and a radial bearing handles the bending load
• High 10,000 lb underground safe working load in a compact, jobsite-friendly body
• Manufactured from high-strength stainless steel for corrosion resistance and long service life
• Built-in oil seal keeps out dirt and moisture to protect the bearings
• Grease point included for easy field lubrication and extended service life
• Supplied with a hexagon clevis pin for a secure, reliable connection
• Ideal companion to Current Tools pulling rope and cable pullers on medium-to-heavy pulls

Specifications

• SKU: CUR00505-030
• Price: 513.33
• Weight: 3.30 lbs
• Dimensions: 7.13" L x 1.75" W x 1.75" H
• Style: Line Swivel (Cable Pulling Accessory)
• Brand: Current Tools
• Model / Part Number: 00505-030
• Underground Safe Working Load: 10,000 lb (3:1 safety factor, horizontal pull only)
• Overhead Safe Working Load: 6,000 lb (5:1 safety factor)
• Overall Diameter: 1-5/8 in
• Overall Length: 6 in
• Net Weight: 2.10 lb
