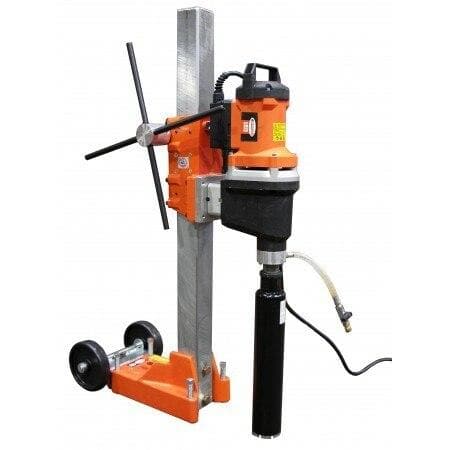

M-2 DRILL RIG WITH VAC AND CB733 MOTOR

Product Features

• Diamond Products M-2 heavy-duty combination core drill rig, one of the most popular professional coring rigs in the U.S.
• Ships complete with the Core Bore CB733 3-speed electric drill motor and a vacuum pump
• Combination base allows quick change-over from vacuum mounting to anchor mounting
• Vacuum pump lets you mount quickly to a flat surface without drilling an anchor hole
• 2-7/8" precision, chrome-plated square column (mast) for rigid, accurate drilling
• Dual switch/outlet control panel with amp meter for monitoring load
• CB733 motor drills bits up to 14" (up to 16" with one spacer block)
• Built for larger jobs and the professional driller

Specifications

• SKU: DIA4245118
• Price: 4069.63
• Weight: 46 lbs
• Dimensions: 14" L × 10" W × 38" H
• Brand: Diamond Products
• Catalog Number: 4245118
• Type: M-2 Combination Core Drill Rig (with vacuum pump)
• Motor: Core Bore CB733, 3-speed electric
• Motor Speeds: 550 / 1000 / 1600 RPM
• Motor Amperage: 20 A, 120 V
• Bit Capacity: up to 14 in (16 in with one spacer block)
• Column: 2-7/8" chrome-plated square mast
