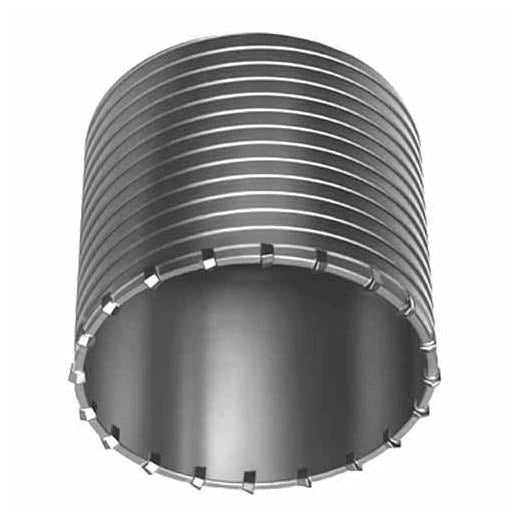

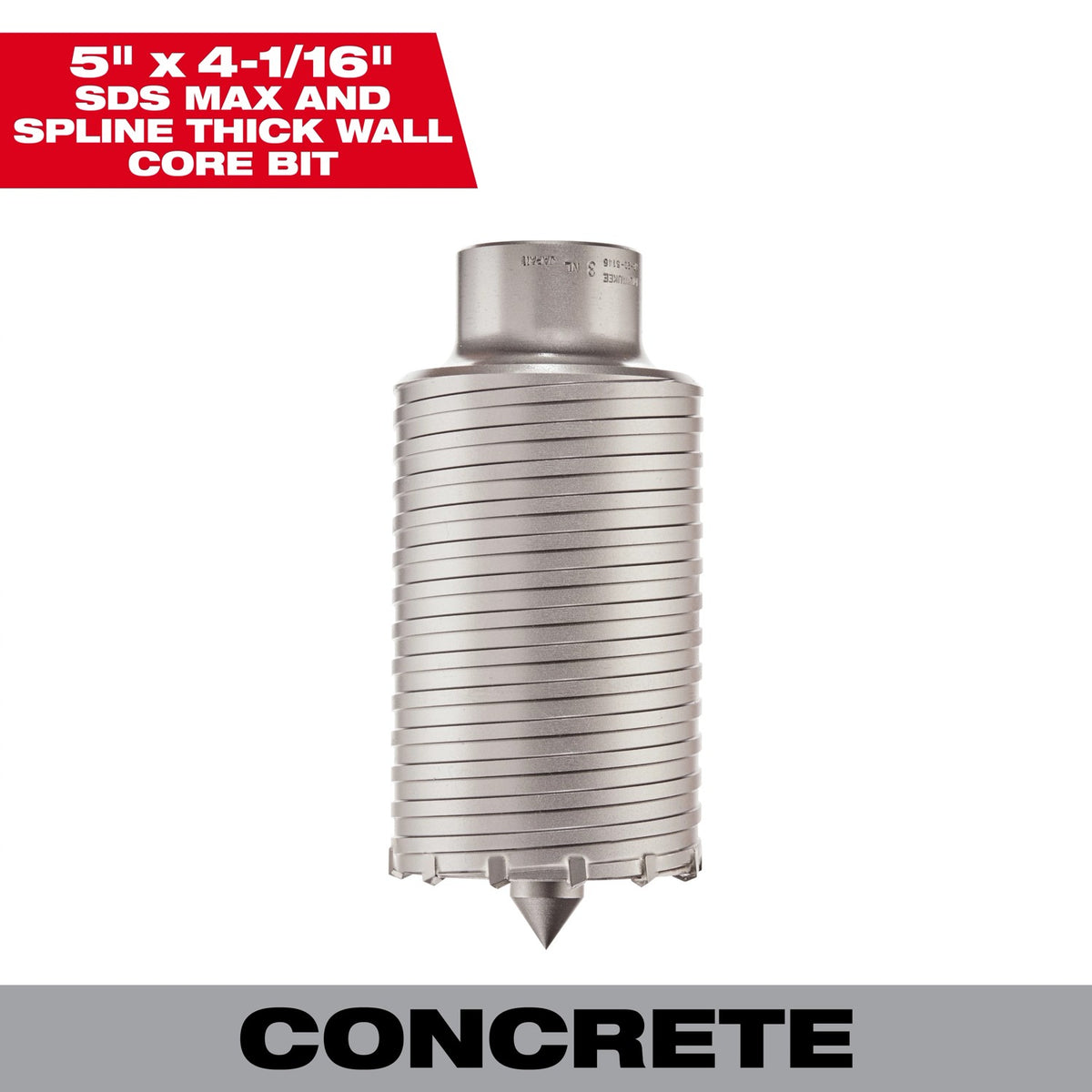

Milwaukee SDS Max and SPLINE Thick Wall Carbide Tipped Core Bit 5" (48-20-5160)

Product Features

• 5" Diameter
• Includes Core Body with Guide Plate & Centering Pin
• Thick Wall Design
• Usable Cuting Depth 4-1/16"
• Use with 12" or 18" Spline Adapter Shanks (48-03-3564, 48-03-3565 ) and 12" or 18" SDS Max Adapter Shanks (48-03-3572, 48-03-3573)

Specifications

• Brand: Milwaukee
• Catalog Number: 48-20-5160
• Weight: 6.34 lb
• Dimensions: 8.25 x 7.5 x 7.25 in
• Bit Group: Core Body with Guide Plate and Centering Pin
• Bit Size: 4"
• Bit Style: Thick Wall for SDS-MAX or Spline
• Bit Type: Percussion
• Drill Bit Depth: 4-1/16"
• Kit Type: Non-Kit
• Number of Pieces Included: 1
• Shank Size: 3/4"
• Warranty: No Warranty
• Group: Core Body with Guide Plate and Centering Pin
• Cutting Depth: 4-1/16"
• Size: 4"
• Diameter: 5"
• Depth: 4-1/16"
• Material Composition: High Speed Steel
• Style: Thick Wall for SDS-MAX or Spline
