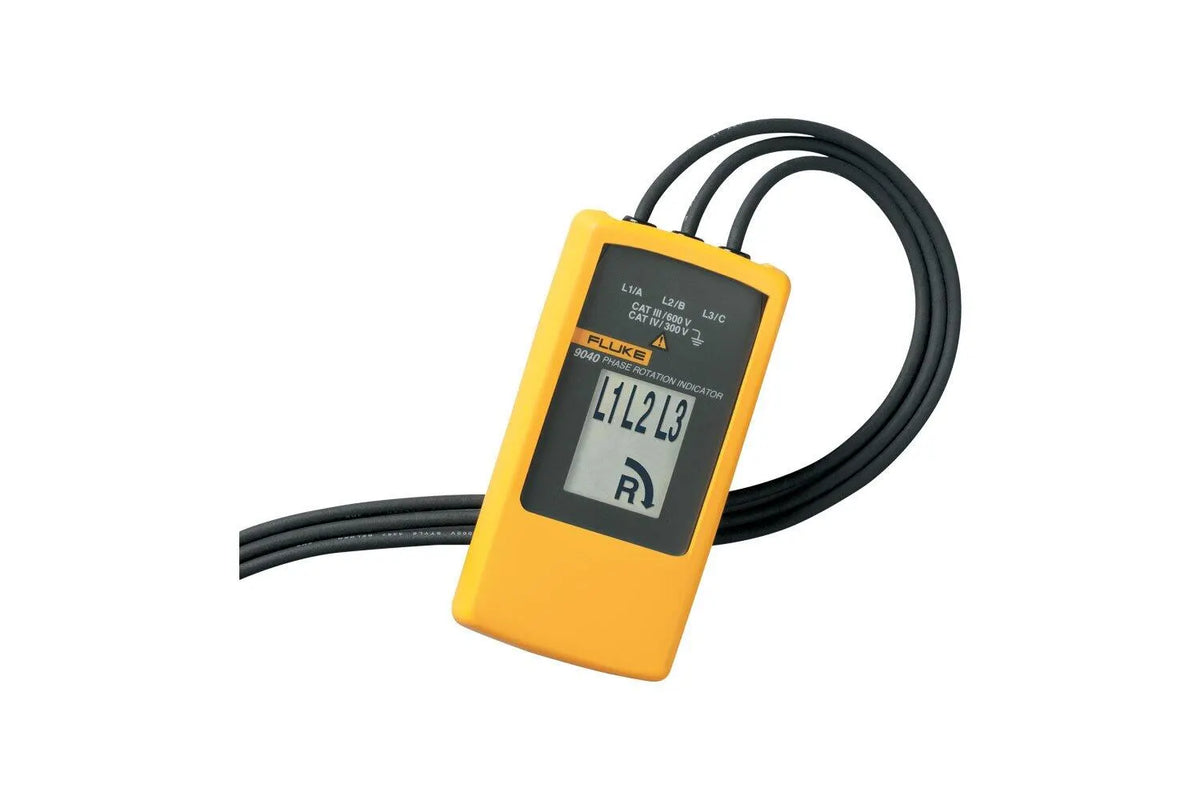

PHASE ROTATION INDICATOR

Product Features

• Portable handheld phase rotation indicator that detects the rotary field of three-phase systems — quickly shows clockwise or counter-clockwise direction
• Clear LCD display indicates all 3 phases and the direction of phase rotation to verify correct connections
• Ideal for motors, drives, and electrical systems anywhere three-phase supplies are used
• No battery required — powered directly from the unit under test for grab-and-go convenience
• High voltage capability up to 700 V and a wide frequency range for commercial and industrial applications
• Wide 15–400 Hz frequency range also suits aircraft power installations
• Included self-retaining test probes have a variable clamping range for safe contact, even in industrial sockets
• Rugged, compact, and lightweight for everyday field use

Specifications

• SKU: FLUFLUKE-9040
• Price: 426.7
• Weight: ~0.44 lbs
• Dimensions: 4.88" L x 2.40" W x 1.06" H
• Style: Phase Rotation / Rotary Field Indicator
• Brand: Fluke
• Model / Part Number: FLUKE-9040
• Nominal Voltage: 40–690 V AC (rated up to 700 V)
• Frequency Range: 15–400 Hz
• Max Operating Voltage (Ume): 690 V
• Safety Rating: CAT III 600 V to ground
• Display: LCD (direction of rotation)
