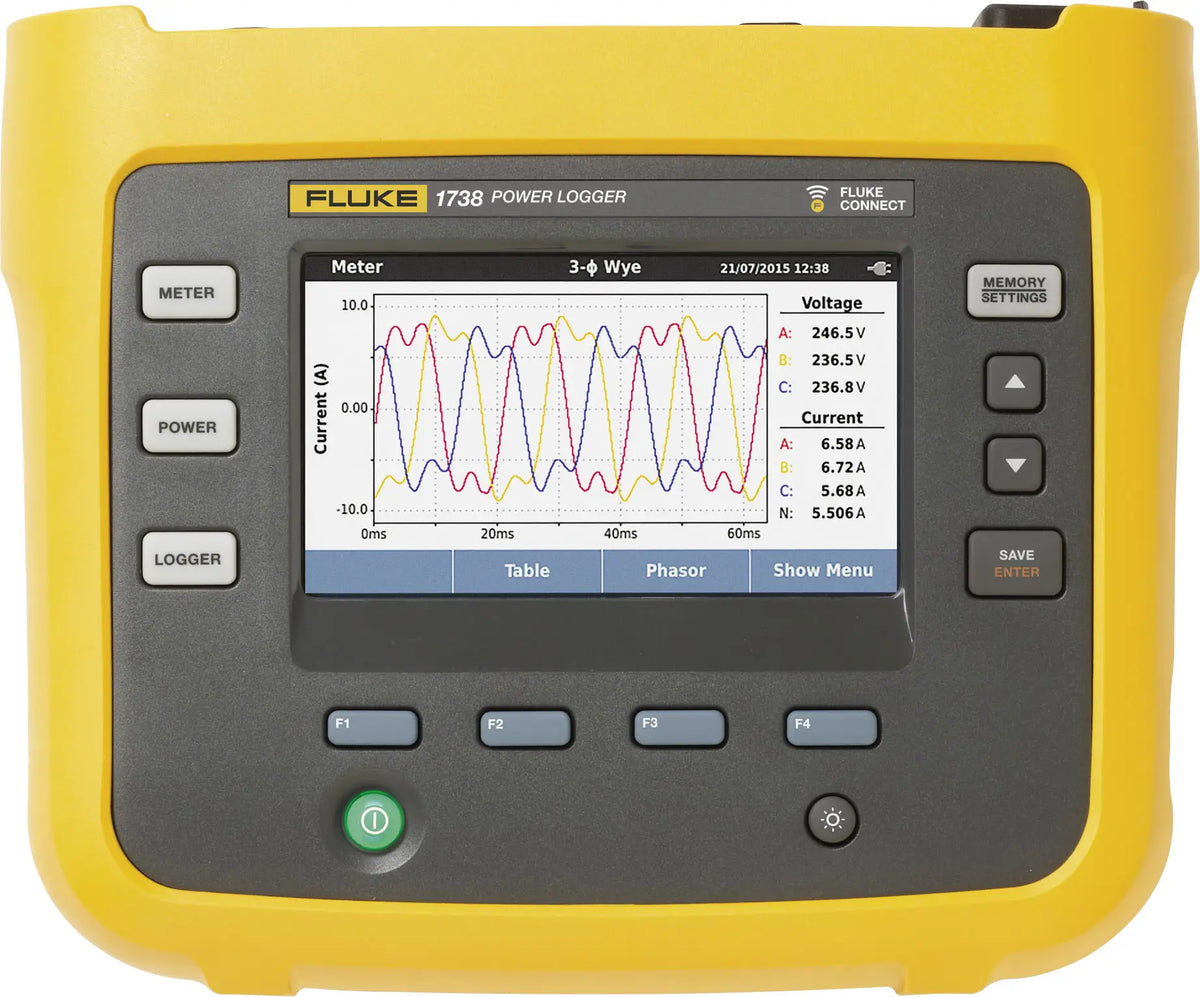

Fluke 1738 Advanced Three-Phase Power Logger, EU/US (1738/EUS)

Product Features

• Three-phase advanced power logger for energy studies, load studies, and power quality logging
• Automatically captures and logs over 500 power quality parameters — nothing to remember to record
• Measures all three phases and neutral with the four flexible current probes included
• Power Quality Health Summary (EN50160) — the Advanced feature that separates the 1738 from the 1736 — gives fast insight into overall electrical system health
• Intelligent measurement verification digitally checks and corrects common connection errors, so a reversed or swapped lead doesn't cost you the whole study
• Captures dips, swells, and inrush currents to help pinpoint root causes
• Event waveform snapshot plus high-resolution RMS profile, with date, timestamp, and severity
• Color touch screen for in-the-field analysis and data checks without a laptop
• Stores more than 20 separate logging sessions
• Review measurements during a logging session for real-time analysis
• Quick guided setup completed at the panel — through the front panel or the Fluke Connect® app, no trip back to the shop
• Fluke Connect® compatible: access and share data remotely with your team
• Energy Analyze Plus desktop software for detailed download and analysis
• Instrument can be powered from the measured circuit

Specifications

• SKU: FLUFLUKE-1738/EUS
• Price: 8312.86
• Weight: ~ 11.50 lbs
• Dimensions: 7.80 L x 3.80 W x 1.90 H (inch)
• Style: Three-Phase Advanced Power Logger
• Brand: Fluke
• Model / Cat. No.: 1738/EUS (EU and US version — includes current probes)
• Fluke Part No.: 4563577
• Voltage Range: 1000 V, 0.1 V resolution, ±(0.2% + 0.01%) accuracy
• Current — Included Probes: i17xx-flex 1500, 12 in — 150 A range (0.1 A res) and 1500 A range (1 A res), &plu
• Frequency: 42.5 Hz – 69 Hz, 0.01 Hz resolution, ±0.1%
• Auxiliary Input: ±10 V DC, 0.1 mV resolution, ±(0.2% + 0.02%)
