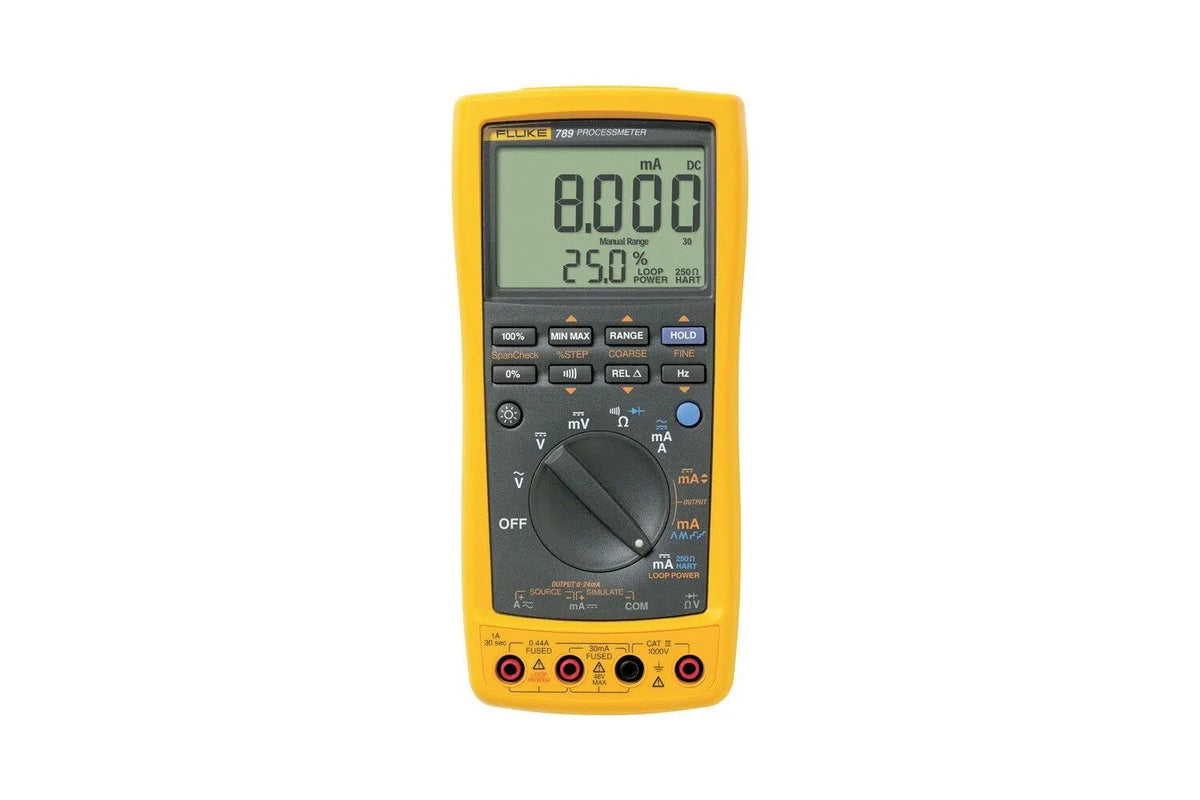

PROCESSMETER

Product Features

• 789 ProcessMeter combines a full loop calibrator with a CAT III 1000V / CAT IV 600V digital multimeter
• Measures, sources, and simulates 4-20 mA signals with a built-in 24V loop supply
• Built-in selectable 250-ohm HART resistor eliminates carrying a separate resistor
• Large dual display with two levels of backlight; simultaneous mA and % of scale
• SpanCheck (0% / 100%), 25% and manual step, plus auto step and auto ramp on mA output
• 1200-ohm drive capability on mA source; 0.1% DC voltage / 0.05% DC current accuracy
• Externally accessible fuse and batteries; Fluke Connect ready via optional IR3000FC
• Runs on 4 AA batteries (about 140 h measuring)

Specifications

• SKU: FLUFLUKE-789
• Price: 1426.93
• Weight: 610 g (1.3 lb)
• Dimensions: 1.97" x 3.94" x 8.00" (HxWxL)
• Brand: Fluke
• Model: 789 ProcessMeter
• Type: Loop Calibrator + Digital Multimeter
• Safety Rating: CAT IV 600V / CAT III 1000V
• Loop Supply: 24V
• HART Resistor: selectable 250 ohm
• mA Source Drive: 1200 ohm
• DC Accuracy: 0.1% V / 0.05% mA

Order today for same-day pickup from our Houston or San Antonio locations.

We offer same-day pickup at both of our retail locations, as well as delivery upon request.
