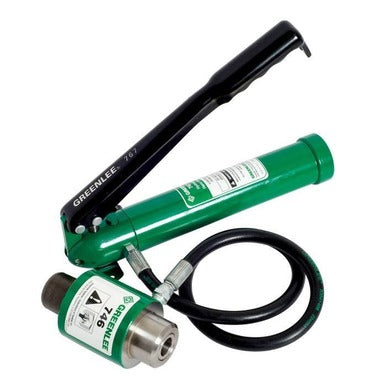

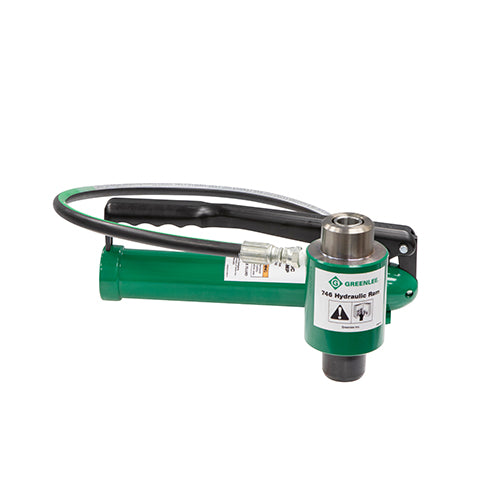

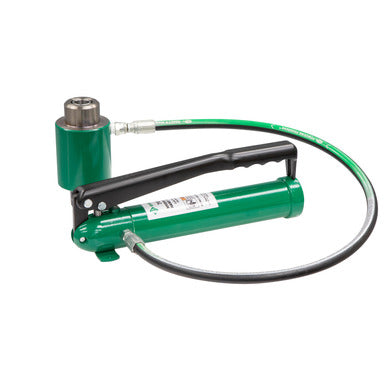

PUMP,HAND-HYD (767)

Product Features

• Hydraulic hand pump for powering Greenlee punch drivers — lightweight and portable
• Develops 6,500 psi (44,818 kPa) at 0.0823 in³ (1.3 cm³) per stroke
• Operates in any position — no need to keep it upright on a crowded panel job
• Single speed, fast and simple to operate
• Compact design suits construction sites and maintenance work
• Rugged steel pump body and reservoir with cast aluminum handle
• Mounting holes allow easy permanent mounting on a bench or cart
• Powers Greenlee model 746 and 746C hydraulic rams and model 15631 single-acting rams
• Will also drive the 751 cable cutter head
• Fill with Greenlee hydraulic oil or Mobil DTE-13 only
• Repair kit 50034349 available to replace all O-ring seals and balls
• Pump only — ram and hose sold separately
• This is not an insulated tool; do not use near live circuits

Specifications

• Style: Hydraulic Hand Pump
• Brand: Greenlee
• Catalog No.: 767
• Pressure Rating: 6,500 psi (44,818 kPa)
• Displacement: 0.0823 in³ (1.3 cm³) per stroke
• Speed: Single speed
• Operating Position: Any position
• Body / Reservoir Material: Rugged steel
• Handle Material: Cast aluminum
• Mounting: Mounting holes provided
• Overall Size: 13 in L × 4 in W × 4 in H
• Weight: 6 lb
• Approved Fluids: Greenlee hydraulic oil or Mobil DTE-13 only
• Compatible Rams: Greenlee 746, 746C; 15631 single-acting
• Also Drives: Greenlee 751 cable cutter head
• Used In Kits: Punch drivers 1731, 7306, 7306SB, 7310, 7310SB, 7506, 7646; cable cutter 750
• Repair Kit: 50034349 (O-rings, balls)
• Ram / Hose: Not included — pump only
• Insulation: Not an insulated tool
• UPC: 783310132844
• Greenlee Benefit: 6,500 psi from a 6 lb pump that works in any position — and it drives the 751 cable cutter head as well as your punch driver
