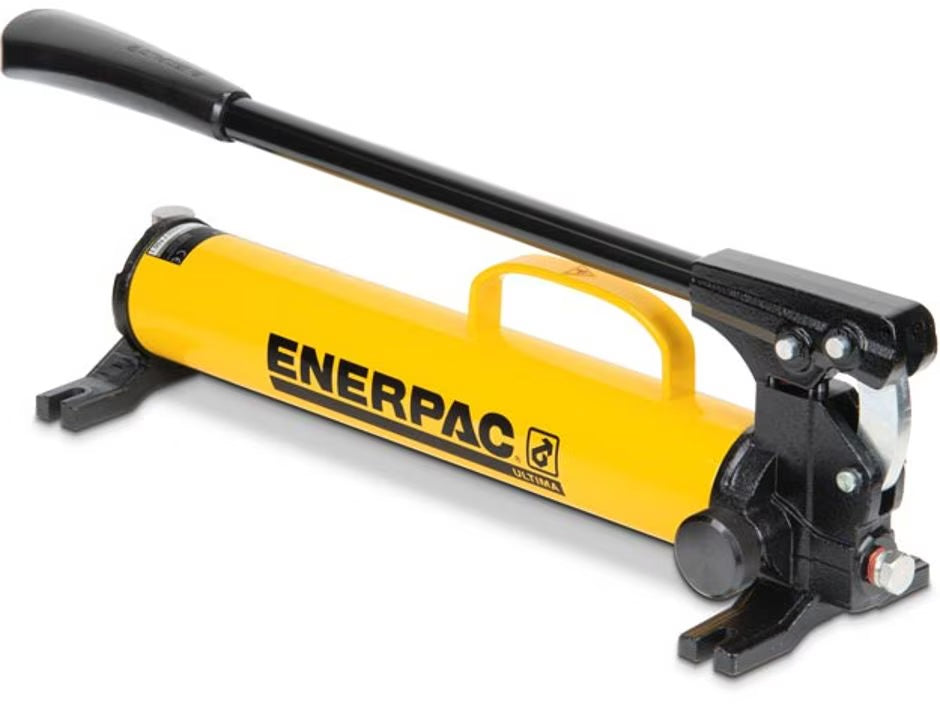

Pump, Hand, Single-Speed

Product Features

• High-pressure single-speed hydraulic hand pump for lifting, bolting, or applying pressure with a hydraulic cylinder (sold separately)
• Advances and releases single-acting cylinders — ideal for intermittent, non-repetitive construction, manufacturing, and MRO applications
• 10,000 psi maximum operating pressure for demanding hydraulic work
• Internal pressure relief valve helps protect the pump from overload
• Vent-free reservoir prevents oil spilling and suits non-vented applications; operates in horizontal or vertical position
• All-steel body resists corrosion and wear; chrome-plated plunger and wiper system extend pump life
• Ergonomically designed grip reduces operator hand fatigue, with a built-in carrying handle for transport
• Part of the Enerpac ULTIMA Steel hand-pump series

Specifications

• Style: Single-Speed Hydraulic Hand Pump (ULTIMA Steel)
• Brand: Enerpac
• Model / Part Number: P-39
• Max Operating Pressure: 10,000 psi (700 bar)
• Cylinder Type Served: Single-acting
• Usable Oil Capacity: 41–47 in³ (≈672 cm³)
• Oil Displacement per Stroke: 0.15 in³
• Max Handle Effort: 85 lb (some sources list up to 111 lb)
• Port Size: 3/8"–18 NPTF
• Piston Stroke: 1.00 in
• Reservoir: Vent-free
• Body Material: Steel; chrome-plated plunger
• Dimensions: 18.91" L x 5.51" W x 6.39" H
• Weight: ~13.6 lb
• Country of Origin: USA
• Enerpac Benefit: Rugged 10,000 psi single-speed steel hand pump with vent-free reservoir and overload relief for single-acting cylinders
