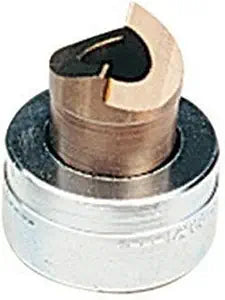

PUNCH, 2 COND (744) SC

Product Features

• Slug-Splitter® SC self-centering knockout punch for 2" conduit size
• Self-centering design aligns the punch on the pilot hole — no need to draw crosshairs or line up die alignment marks
• Unique slug-splitting punch profile splits the slug for easier removal
• Tool steel construction punches through 10 gauge (3.5 mm) mild steel and stainless steel
• Rated for stainless steel, not just mild steel
• Excellent abrasion resistance for punching fiberglass and plastic
• Pairs with die 28166 and draw stud 29452 (hydraulic drivers 7646, 7625) or 12099 (ratchet driver 1904)
• Replacement punch — punch, die, and draw stud are all required to make a hole
• Operate with battery, hydraulic, or high-leverage ratchet driver only

Specifications

• Style: Knockout Punch, Self-Centering
• Brand: Greenlee
• Series: Slug-Splitter® SC
• Catalog No.: 28165
• Conduit Size: 2 in
• Actual Hole Size: 2.416 in
• Material Capacity: 10 gauge (3.5 mm) mild steel and stainless steel
• Punch Material: Tool steel
• Corresponding Die: 28166
• Corresponding Draw Studs: 29452 (for hydraulic drivers 7646, 7625); 12099 (for ratchet driver 1904)
• Also Suitable For: Fiberglass, plastic
• Drive Requirement: Battery, hydraulic, or high-leverage ratchet driver only
• Sold As: Punch only
• Die / Draw Stud: Not included
• Greenlee Benefit: Centers itself on the pilot hole and splits the slug on the way out — 10 gauge stainless, no crosshairs to draw
