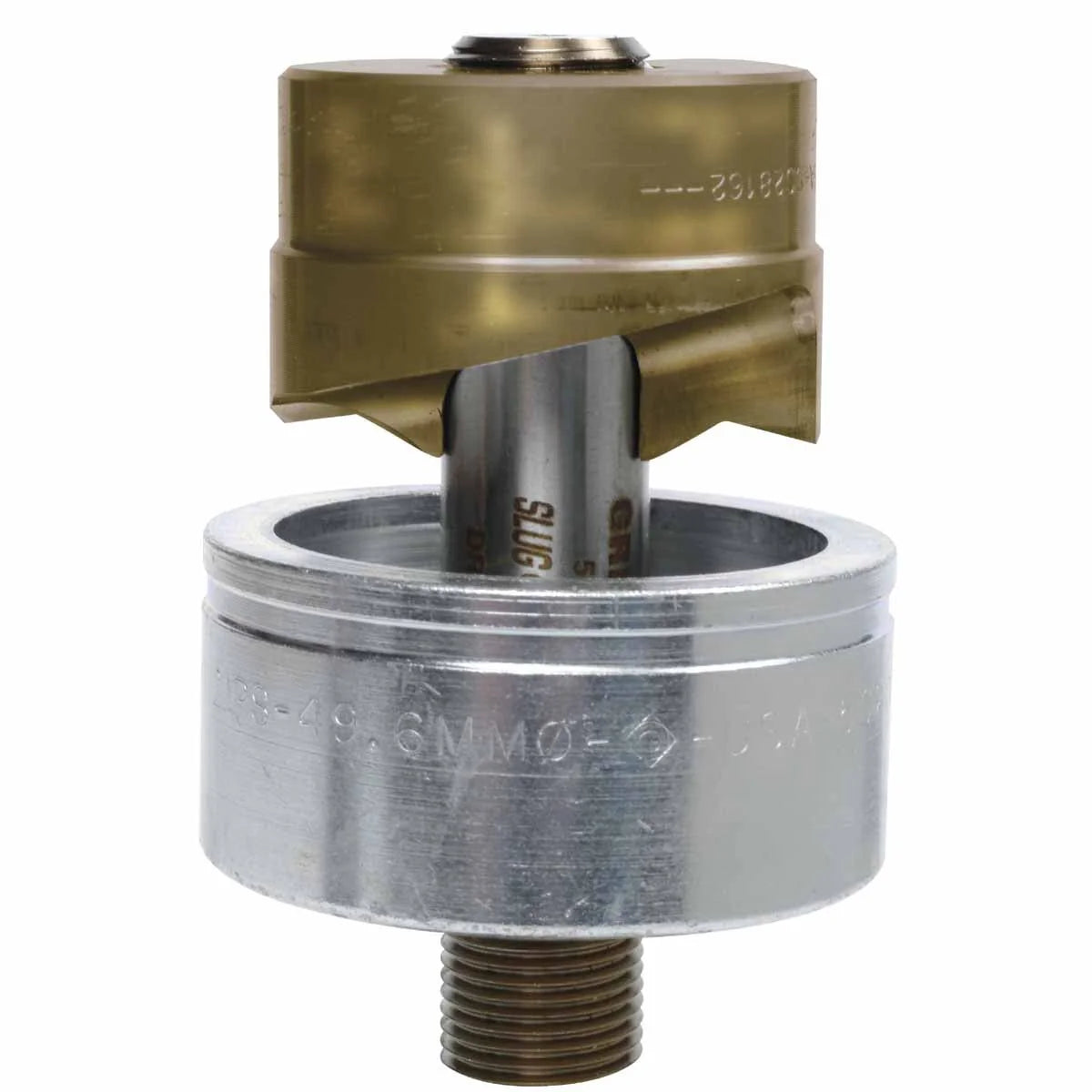

PUNCH, 3/4 COND (744) SC

Product Features

• Self-centering punch that aligns itself on the pilot hole — no crosshairs to draw, no die alignment marks to line up
• Punches up through 10 gauge (3.5 mm) stainless steel, plus mild steel, fiberglass, and plastic
• Slug-splitting profile breaks the slug so it drops free instead of jamming in the die
• Tool steel construction for repeated punching in stainless without edge breakdown
• Excellent abrasion resistance when punching fiberglass and plastic enclosures
• Cuts a 1.115" (28.3 mm) hole — the correct clean opening for 3/4" conduit or PG 21 fittings
• Self-centering design cuts setup time on every hole, which adds up fast on multi-hole panel work
• Replacement punch — pairs with Greenlee die 28157 and the matching draw stud for your driver
• Operate with a battery, hydraulic, or high-leverage ratchet driver only — not for use with a hand wrench
• Part of Greenlee's Slug-Splitter SC® knockout system

Specifications

• Style: Slug-Splitter SC® Self-Centering Knockout Punch (Replacement)
• Brand: Greenlee
• Model / Cat. No.: 28156
• Conduit / Pipe Size: 3/4 in (PG 21)
• Cutting Diameter: 1.115 in (28.3 mm)
• Material Capacity: Up through 10 ga (3.5 mm) stainless steel; also mild steel, fiberglass, plastic
• Punch Material: Tool steel
• Corresponding Die: 28157
• Corresponding Draw Studs: 31872 (hydraulic drivers 7804, 7904); 29452 (hydraulic drivers 7646, 7625); 12099 (ratchet driver 1904)
• Compatible Drivers: Battery, hydraulic, or high-leverage ratchet only
• Sold As: 1 per package
• Country of Origin: United States
• UPC: 783310281566
• Greenlee Benefit: Self-centering punch that lands on the pilot hole every time and splits the slug clean out of 10 ga stainless
