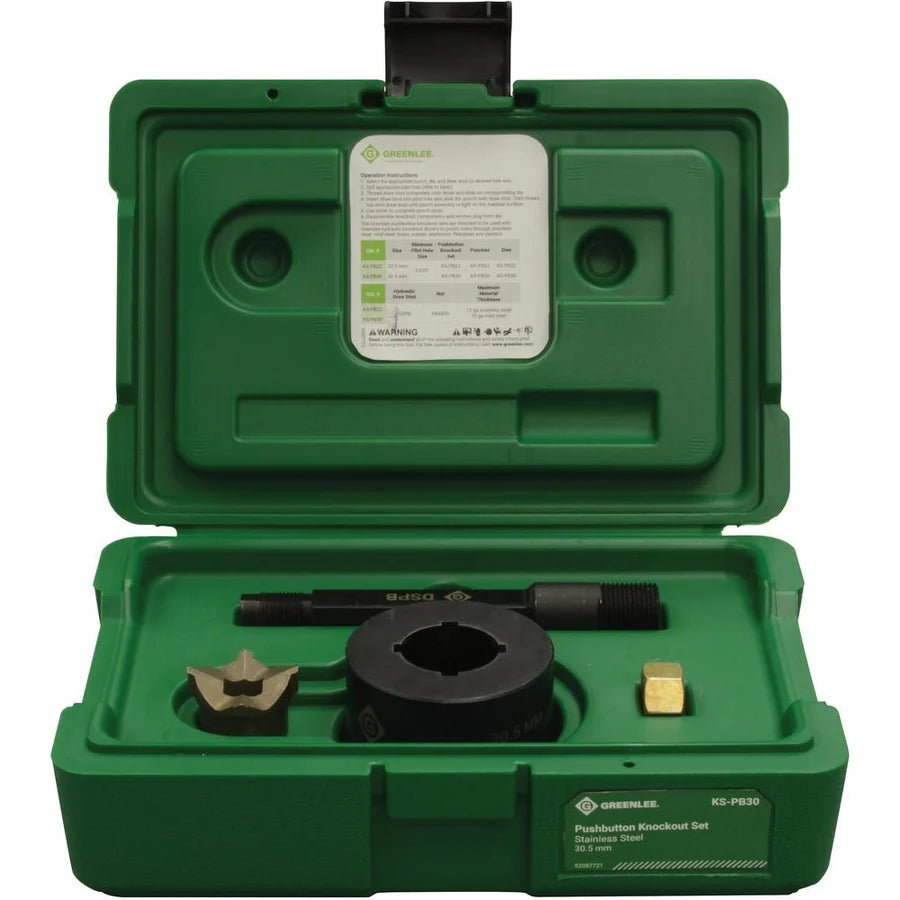

PUSHBUTTON SET 30.5MM

Product Features

• Punches the round hole and the keying notch in one operation — no second setup to cut the anti-rotation notch
• Sized for 30.5 mm oiltight pushbuttons, the standard hole for industrial control station buttons and pilot devices
• Notch keys the pushbutton so it can't rotate in the panel once the nut is tightened
• Redesigned die with optimized depth covers a wider range of materials and drivers
• Rated for 12 gauge in both mild steel and stainless steel
• Durable high-grade steel construction for maximum life in stainless
• Works with any Greenlee hydraulic driver — no adapters required
• Compatible with 7-ton and 11-ton battery-hydraulic knockout drivers, and 8-ton and 11-ton manual-hydraulic knockout drivers
• Complete set — punch, die, draw stud, and nut all included
• Replacement components available separately: KP-PB30 punch and KD-PB30 die
• Part of Greenlee's pushbutton (oiltight) knockout line

Specifications

• Style: Pushbutton (Oiltight) Knockout Set
• Brand: Greenlee
• Model / Cat. No.: KS-PB30
• Hole Size: 30.5 mm
• Hole Profile: Round with keying notch (single operation)
• Application: Oiltight pushbutton installation
• Material Capacity: 12 ga mild steel; 12 ga stainless steel
• Punch / Die Material: High-grade steel
• Driver Compatibility: Any Greenlee hydraulic driver — 7 ton and 11 ton battery-hydraulic; 8 ton and 11 ton manual-hydraulic. No adapters required.
• Includes: Punch, die, draw stud, nut
• Component Punch: KP-PB30
• Component Die: KD-PB30
• UPC: 783310044369
• Greenlee Benefit: Cuts the 30.5 mm hole and the anti-rotation notch in a single pull — one setup instead of two for every pushbutton in the panel
