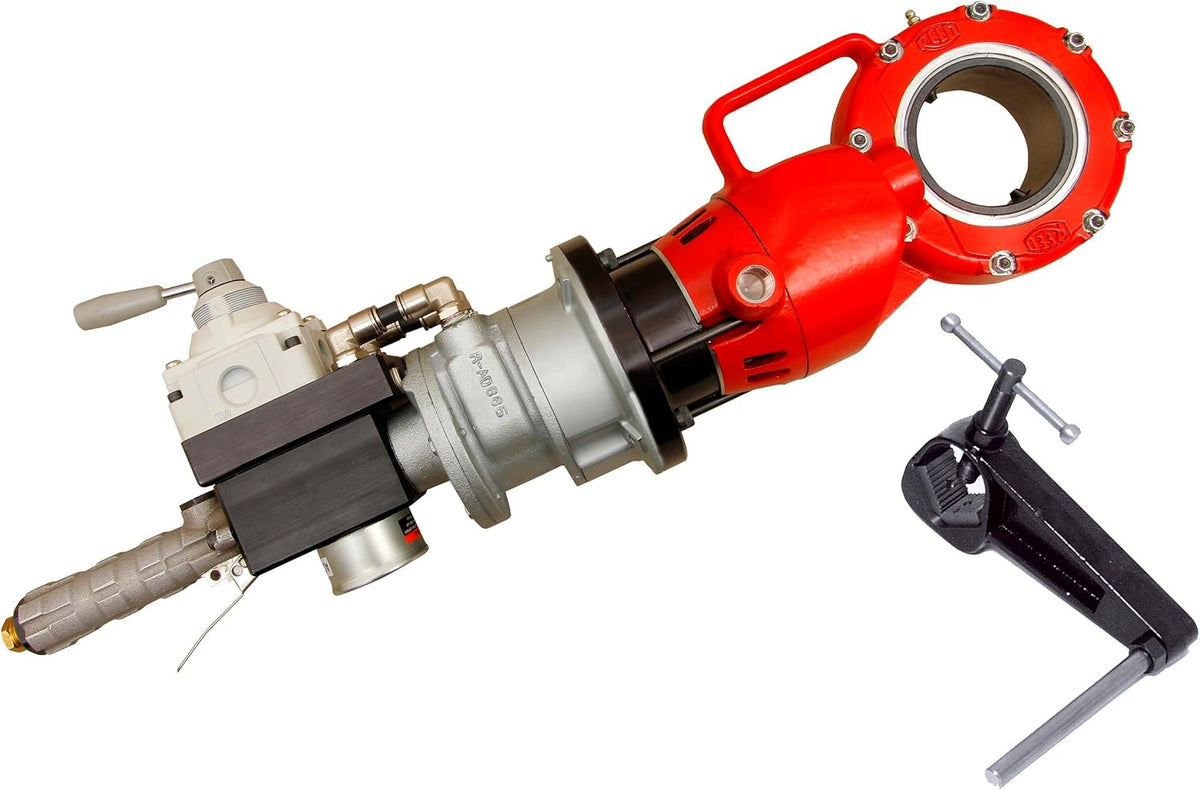

Reed 700APD Pneumatic Power Drive Set with Safety Arm and Six 1/2"-2" NPT Dropheads (700APDSET)

Product Features

• Pneumatic power for threading pipe where electric shock or sparks from an electric tool are hazardous
• Threads pipe and conduit up to 2" (50 mm) diameter; set includes six dropheads for 1/2" - 2" NPT
• 4 HP pneumatic motor turns at 28 RPM no load with a maximum torque of 400 lb-ft
• Included 700V Safety Arm absorbs threading forces and frees the operator to oil the dies
• May also be used for power tapping or valve exercising

Specifications

• Brand: Reed
• Catalog Number: 700APDSET
• Weight: 83 lb
• Dimensions: 31 x 10 x 8.5 in
• Item Code: 05262
• Capacity: 1/2 - 2 NPT (21.3 - 60.3 mm actual O.D.)
• Motor: 4 HP pneumatic
• Speed: 28 RPM (no load)
• Maximum Torque: 400 lb-ft
• Air Consumption: 80 CFM @ 90 psi (2.4 cu. m/min @ 6.2 bar)
• Includes: Pneumatic power drive, safety arm, six dropheads 1/2" - 2" NPT
• Dies: Reed R12+ segmental dies and dropheads
• Note: Always use a filter-regulator-lubricator (FRL); Reed offers FRL #97591
