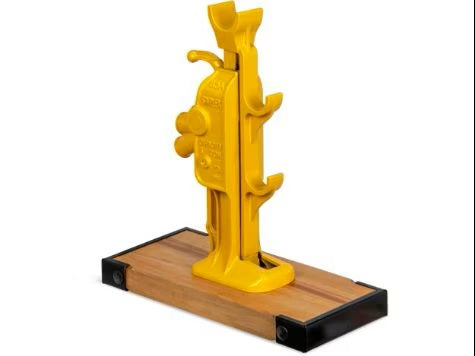

Reel Jacks, 10 ton (89,0 kN) Capacity, 9.5 in

Product Features

• Mechanical reel jack that lifts and supports cable and wire reels for controlled pay-out during installation and maintenance
• Used in pairs to elevate a reel so cable can be pulled and unwound efficiently
• Double-lever sockets allow jacking in close quarters and confined spaces
• Multiple-tooth pawls for added strength and safety under load
• Drop-forged, heat-treated alloy steel components for durability and long service life
• Three spindle hooks: top hook fits up to 2-1/2" (64 mm) spindles; two side hooks fit up to 2" spindles
• Center-mounted carrying handle makes the jack easy to position and move
• Treated laminated hardwood base for solid, durable support; plated springs resist corrosion
• Meets or exceeds ANSI/ASME B30.1 safety standards; CE compliant

Specifications

• SKU: SIMCR320B
• Price: $1,558.50
• Weight: ~90.0 lbs
• Dimensions: 20.38 L x 9.38 W x 20.75 H inch
• Style: Mechanical Reel Jack
• Brand: Simplex (Enerpac)
• Model / Part Number: CR320B
• Series: CR Reel Jacks
• Top Hook Capacity: 10 ton (per pair)
• Side Hook Capacity: 5 ton (per pair)
• Stroke: 9.5 in (241.3 mm)
• Retracted Height: 20.75 in
