RIDGID 1/4" - 4" NPT Hammer Chuck Machine (26092)

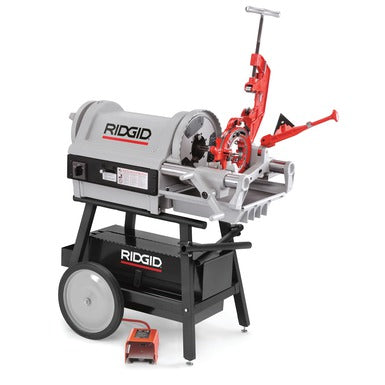

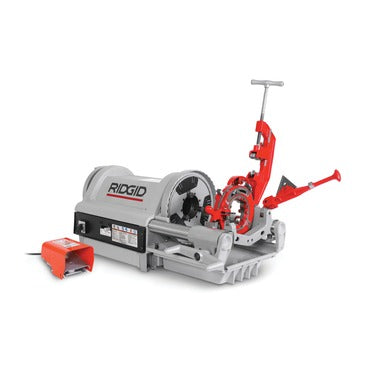

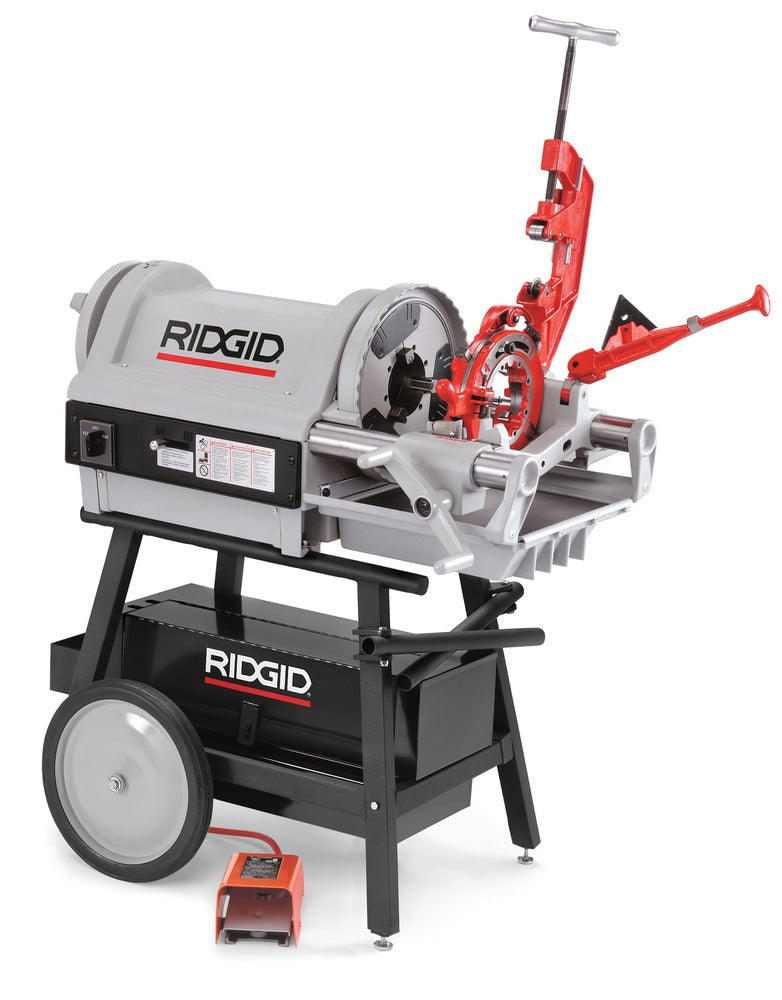

RIDGID Model 1224 Pipe Threading Machine, catalog number 26092. The machine threads black, galvanized, and plastic-coated pipe, plus stainless steel, IMC, and heavy-wall conduit, and rod up to 30 Rockwell C. The hammer-type chuck carries replaceable rocker-action jaw inserts. A two-speed gear box with a 3:1 ratio gives 36 RPM for 1/4" to 2" pipe and 12 RPM for 2-1/2" to 4" pipe. The 711 universal die head covers 1/4" to 2". The 714 receding die head covers 2-1/2" to 4". The motor is a single-phase induction type rated 120 V, 60 Hz, 15 A. A self-priming gerotor oil pump moves thread cutting oil through the die head at constant flow. The machine weighs 509 lb (231 kg).

• Model 1224, catalog number 26092
• Pipe capacity: 1/4" to 2" at 36 RPM
• Pipe capacity: 2-1/2" to 4" at 12 RPM
• Pipe capacity: 4" to 6" with the 161 geared threader
• Bolt capacity: 1/4" to 2"
• Die head: 711 universal and 714 receding
• Gear box: two speed, 3:1 ratio
• Motor: 120 V, 60 Hz, 1 phase, induction, 15 A draw
• Chuck: hammer type, replaceable rocker-action jaw inserts
• Oiling: self-priming gerotor pump, through die head
• Weight: 509 lb (231 kg)
• Includes: 711 universal and 714 receding die heads with right-hand dies, 2-1/2" to 4" NPT high-speed dies, 1/2" to 3/4" and 1" to 2" universal alloy die sets, 1/4" to 4" wheel-type cutter with F229 cutter wheel, 1/4" to 4" blade-type reamer, hex keys, Nu-Clear thread cutting oil, wrench, tool box
