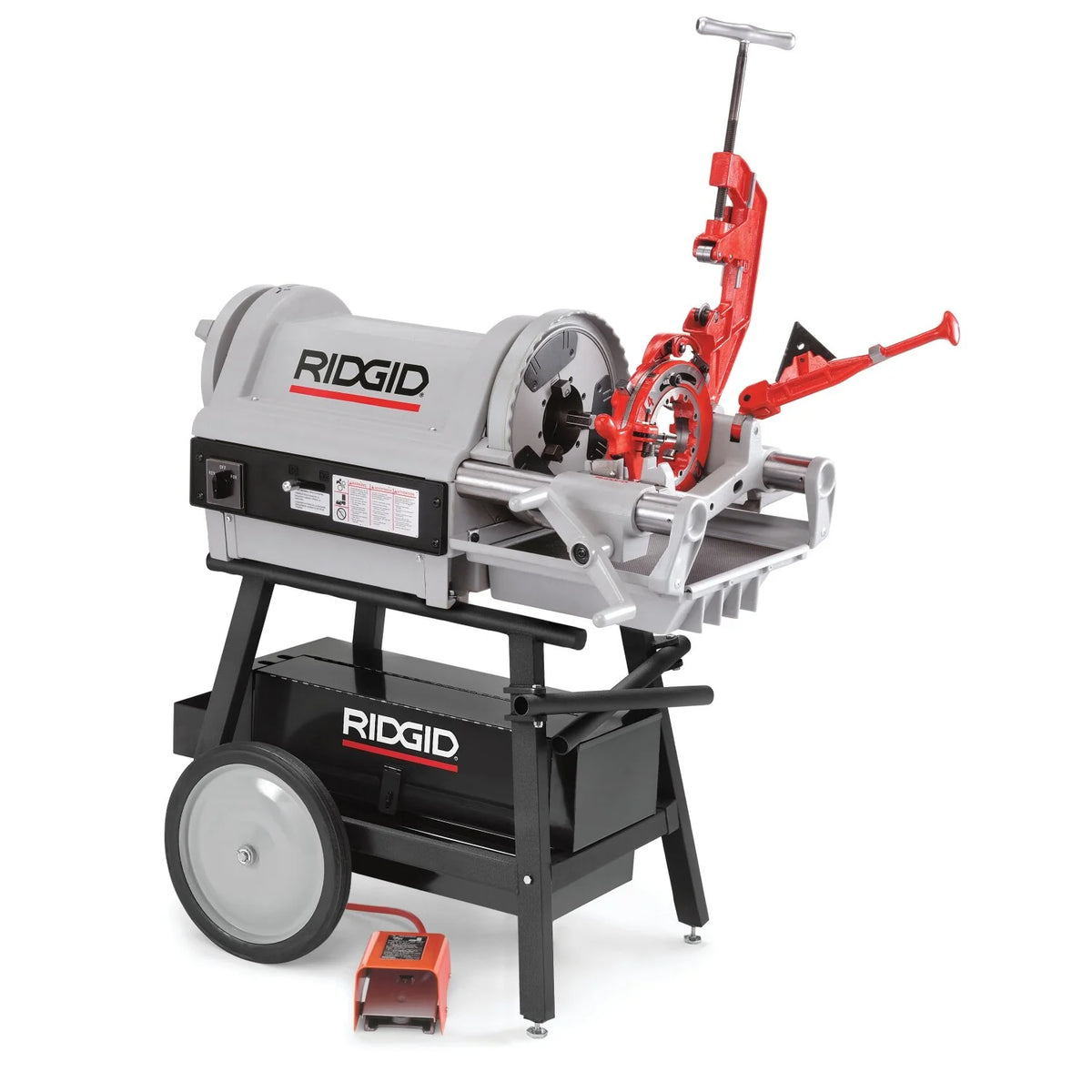

RIDGID 1224 Threading Machine, 1/4" - 4" NPT Hammer Chuck, 230V (26097)

Product Features

• Model 1224 pipe and bolt threading machine: threads black, galvanized and plastic-coated pipe, stainless steel, IMC and heavy-wall conduit, and rod up to 30 Rockwell C.
• An induction motor helps minimize noise.
• A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced.
• 1/4" - 2" universal die head and 2-1/2" - 4" receding die head for tapered or straight NPT/NPSM threads.
• Constant and proper lubrication of dies and workpiece with through-head oiling.

Specifications

• Brand: RIDGID
• Catalog Number: 26097
• Weight: 509 lb
• Dimensions: 47.5 x 33.5 x 21.5 in
• Model: 1224
• Nominal Pipe Capacity: 1/4" - 2" @ 36 RPM; 2-1/2" - 4" @ 12 RPM
• Bolt Capacity: 1/4" - 2"
• Thread Type: NPT
• Die Heads: 711 / 714
• Voltage: 230 V, 60 Hz, single phase
• Amp Draw: 8 A
• Motor: Induction
• Chuck: Hammer-type with replaceable rocker-action jaw inserts
• Gear Box: Two-speed, 3:1 ratio
• Standard Equipment: 711 and 714 die heads, 1224 2-1/2" - 4" NPT HS dies, 1/2" - 3/4" and 1" - 2" universal alloy die sets, 764 wheel-type cutter (26212), 744 blade-type reamer (26217), hex keys, Nu-Clear thread cutting oil, wrench, tool box
• Warranty: Full Lifetime Warranty

Order today for same-day pickup from our Houston or San Antonio locations.

We offer same-day pickup at both of our retail locations, as well as delivery upon request.
