RIDGID

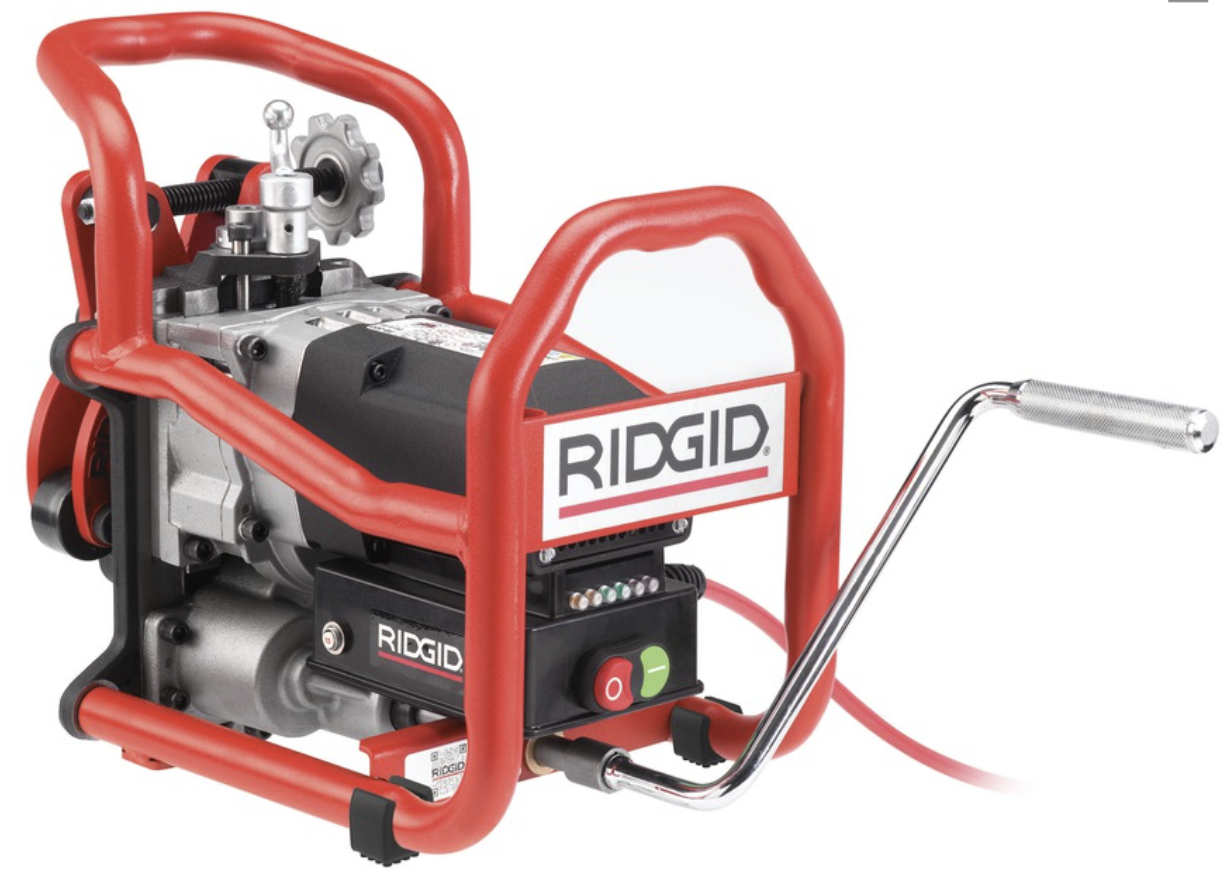

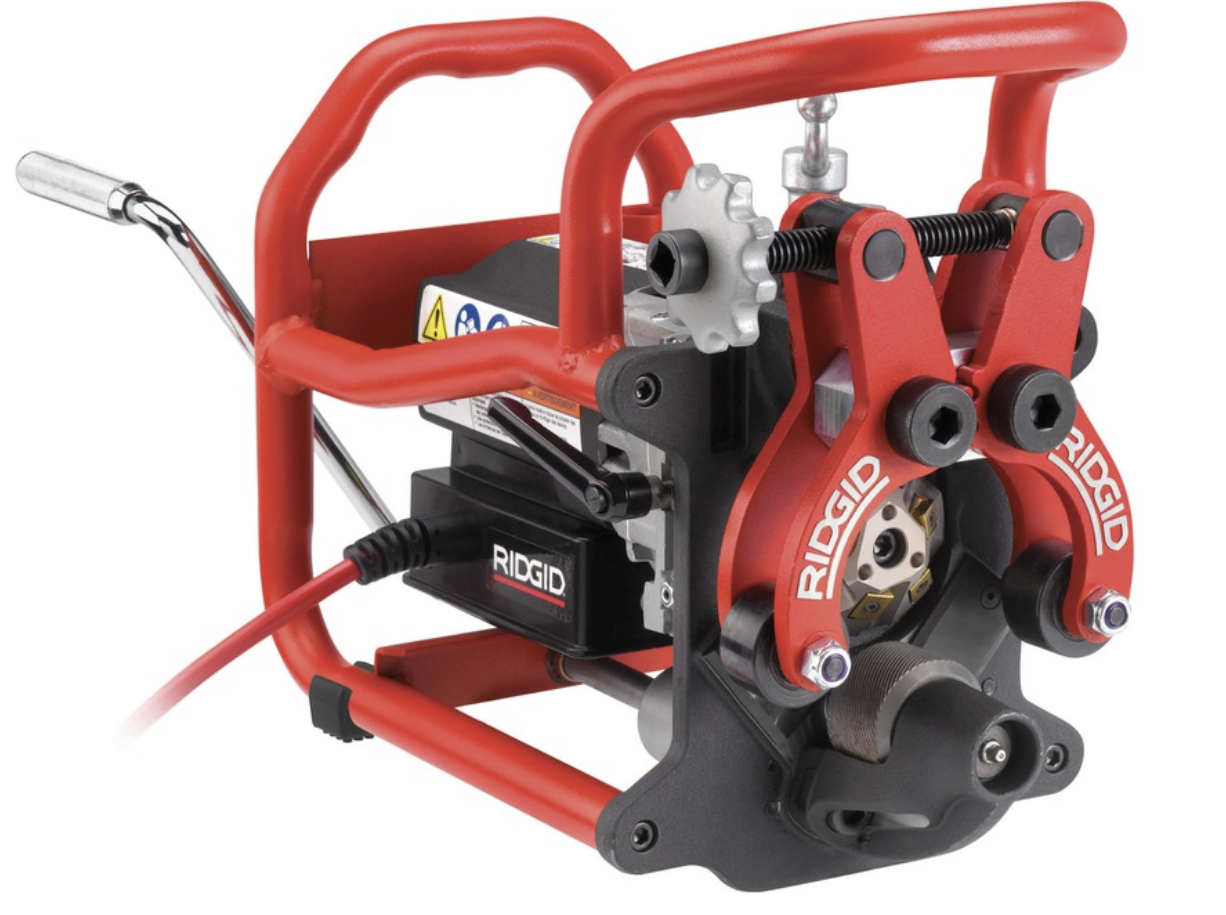

RIDGID B-500 Transportable Pipe Beveller w/37 1/2° Cutter Head, 120V 49298
RIDGID B-500 Transportable Pipe Beveller w/37 1/2° Cutter Head, 120V 49298
SKU:RID49298
Regular price
$4,543.79
Regular price
$4,543.79
Sale price
$4,543.79
Unit price
/
per
Shipping calculated at checkout.
Share
Features
Speed
- Set-up and bevel 10" diameter schedule 40 pipe in 45 seconds!
- Pipe is cool to touch immediately following bevelling.
Consistency
- Accurate bevel angle around diameter of the pipe allows for optimal number of cover passes.
- Adjustable land width from 0" to 3/16" to fit welders’ requirements.
- Produces a machined finish due to 6 replaceable cutter inserts working simultaneously.
Simplicity
- Fast to set-up and operate.
- Patent-pending clamp system firmly secures tool to the pipe.
- Speed monitoring with led indicators for optimal cutter performance.
- Grinding spark free operation.
- Adjustable at 1/32" increments
Specifications
- Capacity: 4" pipe and larger, flat plate
- Pipe Wall/Plate Thickness: Min 0.188" (4.8 mm) / Max 0.50" (12.7 mm)
- Models Equipped With: 37.5°, 30°, or 45° (with optional cutter heads)
- Cutter Head: Rated for most steel and stainless steel*
- Size: 15.8 in. (401 mm) L x 11.5 in. (292 mm) W x 13.3 in. (338 mm) H
- Land Width: 0"–3/16" (4.8 mm) in approximately 1/32" (0.8 mm) increments
- Motor Type: Universal single-phase
- Motor RPM: 950 (no load)
- Body: Steel frame
