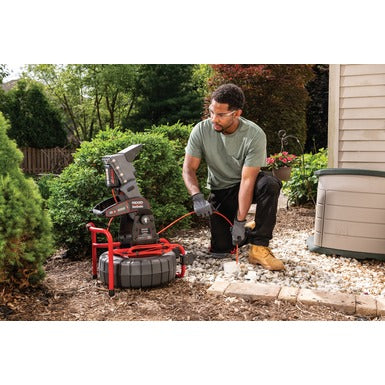

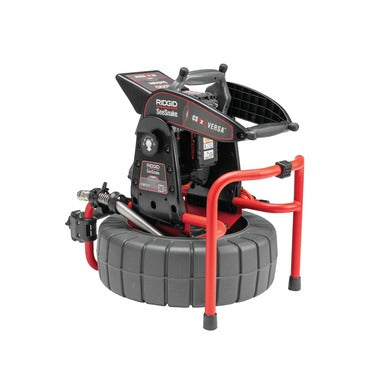

RIDGID SeeSnake Compact C40 LIO Pipe Inspection Camera with TruSense (63828)

The RIDGID SeeSnake Compact C40 LIO Camera System with TruSense (63828) is a professional-grade pipe inspection system designed for plumbers, drain cleaners, and pipeline service contractors. Featuring a self-leveling 1" camera head, 131 ft of fiberglass-core push cable, and RIDGID's TruSense HDR technology, the C40 delivers crystal-clear in-pipe imaging for pipes from 1.5" to 6" in diameter — ideal for residential and light commercial inspection jobs.

Key Features & Benefits

• TruSense HDR Imaging: High dynamic range image sensor preserves color and detail in difficult lighting — see pipe defects clearly even in dark, reflective conditions.
• Self-Leveling Camera Head: Image stays upright as the camera rotates in-pipe, so you always know exactly what you're seeing.
• TiltSense Inclinometer: Displays the camera's angle in-pipe on compatible CSx monitors — diagnose belly, sag, and slope issues with confidence.
• Quick-Release Dock for CS6x Versa: Tilt the monitor at any viewing angle while docked, or undock for flexible job site placement.
• Wi-Fi Enabled with HQx Live App: View and record inspections directly to your phone or tablet — free app makes job documentation and customer reporting effortless.
• 131 ft Push Cable: Long-reach fiberglass-core cable with a tight 2.5" bend radius handles tough turns and traps.
• Built-In 512 Hz FlexMitter Sonde: High-power sonde lets you locate the camera underground or in walls using a RIDGID receiver.
• Two-Way Camera Communication: CSx Wi-Fi monitors talk to the camera — TruSense and TiltSense data appear on screen automatically.
• Built for Job Sites: IPx5 ingress protection (without monitor) and operating range from 14°F to 122°F.

Specifications

• Model / SKU: RIDGID 63828 (SeeSnake Compact C40 LIO with TruSense)
• Pipe Diameter Range: 1.5" to 6" (38 mm to 152 mm)
• Push Cable Length: 131 ft (40 m)
• Push Cable Diameter: 0.26" (6.7 mm) with 3 mm fiberglass core
• Push Cable Jacket: Polypropylene
• Push Cable Minimum Bend Radius: 2.5" (63.5 mm)
• Camera Head Diameter: 1" (25 mm)
• Light Source: High-Intensity LED
• Sonde: 512 Hz FlexMitter (built-in)
• Dimensions (L × W × H): 25" × 14" × 17" (63.5 × 35.6 × 43.2 cm)
• Weight (without batteries): 17.6 lbs (8.0 kg)
• Operating Temperature: 14°F to 122°F (-10°C to 50°C)
• Storage Temperature: 14°F to 158°F (-10°C to 70°C)
• Ingress Protection (without monitor): IPx5

Buy the RIDGID SeeSnake C40 in Houston & San Antonio, TX

Tool Mart is your trusted local source for professional RIDGID SeeSnake pipe inspection cameras in Texas. Order the RIDGID 63828 SeeSnake Compact C40 LIO online for same-day pickup at our Houston or San Antonio retail locations, or request fast local delivery to your job site. Our team supports plumbers, drain cleaners, and pipeline contractors with stocked inventory, authorized RIDGID warranty support, and expert product advice.

Need help selecting the right pipe inspection camera or compatible CSx monitor? Call our Houston store or visit us in person — our team is happy to help.
