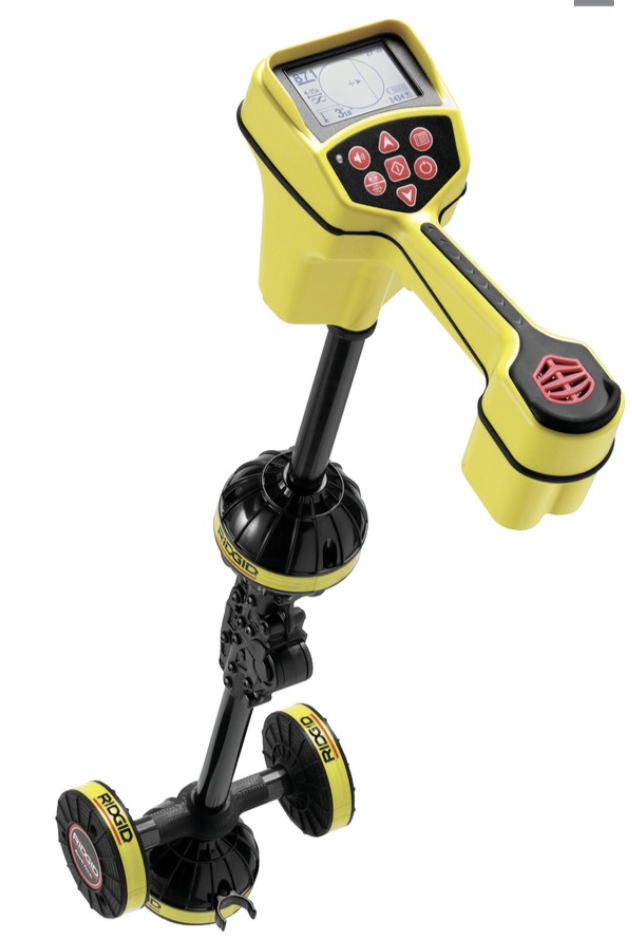

RIDGID SeekTech SR-20 Line Locator (21893)

RIDGID SeekTech SR-20 line locator, catalog number 21893. The receiver traces any active frequency from 10 Hz to 35 kHz, and holds 30 user-definable frequencies in that range. Target line and guidance arrows identify distortion, and the proximity and signal strength readings help through difficult locates. Active line trace frequencies are 128 Hz, 1 kHz, 8 kHz, and 33 kHz. Sonde frequencies run from 16 Hz to 33 kHz, including 512 Hz. The locator runs on four C-cell batteries, which are included, or on a RIDGID 18V battery with the optional SeekTech 18V adaptor. C cells give about 10 to 15 hours, and the 18V battery about 18 to 22 hours. The locator weighs 4.0 lb (1.8 kg). Standard equipment is Navitrack mark chips, pkg of 3, and the 22173 SR-20/SR-24 case.

• Catalog number 21893
• Type: line locator receiver
• Active line trace: 128 Hz, 1 kHz, 8 kHz, 33 kHz
• Passive power trace: 50 Hz, 60 Hz, less than 4 kHz broadband
• Passive radio trace: 4 kHz to 15 kHz, 15 kHz to 36 kHz
• Sonde: 16 Hz, 512 Hz, 640 Hz, 850 Hz, 8 kHz, 16 kHz, 33 kHz
• Frequency range: 10 Hz to 35 kHz, 30 user-definable frequencies
• Power: 4 C-cell batteries (included) or RIDGID 18V battery with optional adaptor
• Battery life: about 10 to 15 hours on C cells, 18 to 22 hours on 18V
• Weight: 4.0 lb (1.8 kg)
• Standard: FCC Class A and EN 55022 Class A
• Includes: Navitrack mark chips, pkg of 3; 22173 SR-20/SR-24 case
