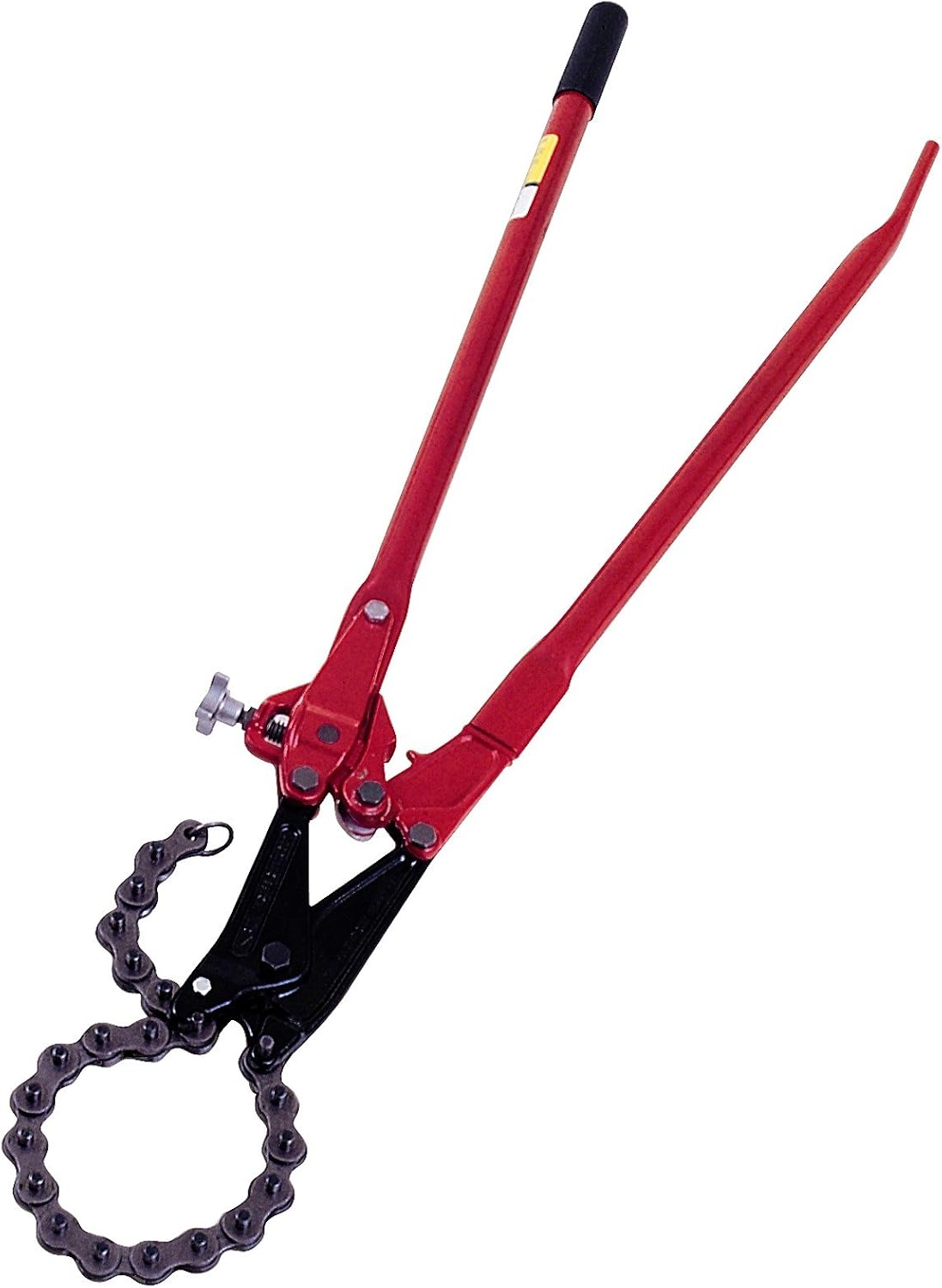

SC59-8 SNAP CUTTER WITH 8IN CHAIN

Product Features

• Single-stroke chain soil pipe cutter — the fastest way to cut cast iron soil pipe, clay pipe, and small-diameter concrete pipe
• Cuts and snaps with one stroke, using operator hand and foot power — no powered tool needed
• Chain applies uniform pressure all the way around the pipe for a clean, consistent, repeatable snap
• Optimized for open work areas, where the operator can put body weight and leverage behind the cut
• Adjusting knob sets the handles to the optimal cutting angle before squeezing
• Designed for stable foot and hand placement during the cut
• Stronger jaws and more durable adjusting screws than the original design, and interchangeable with the original tools
• No-Hub® roller kit is standard
• Extension chains available to increase capacity up to 15 in. diameter pipe
• Well suited to gray water applications and running lines on active jobs
• Jaw sets and cutter chains interchangeable with Wheeler-Rex® models
• Heavy-duty Pressure Screw Assembly available as a service part

Specifications

• Style: Soil Pipe Cutter (Chain, Single Stroke)
• Brand: REED Manufacturing
• Catalog No.: SC59-8
• Item Code: 08060
• Operation: Single stroke (manual)
• Nominal Capacity: 1-1/2 in. – 8 in
• Capacity — No-Hub® cast iron soil pipe: 1-1/2 in. – 8 in. (38–212 mm)
• Capacity — Service weight cast iron soil pipe: 2 in. – 8 in. (62–212 mm)
• Capacity — Extra heavy cast iron soil pipe: 2 in. – 4 in. (62–125 mm)
• Capacity — Concrete pipe: 4 in. – 6 in. (125–160 mm)
• Capacity — Clay pipe: 2 in. – 15 in. (62–403 mm)
• Extension Chains: Available, up to 15 in. (403 mm) diameter
• No-Hub® Roller Kit: Included, standard
• Ratchet Wrench Included: No — that ships with SC49 models
• Cross Reference: Similar to Wheeler-Rex® 590 series
• Pressure Screw Assembly: Order #98047 for SC59 models
• REED Benefit: One-stroke chain cut that snaps cast iron, clay, or concrete pipe cleanly, with jaws and chains that swap with Wheeler-Rex® parts
